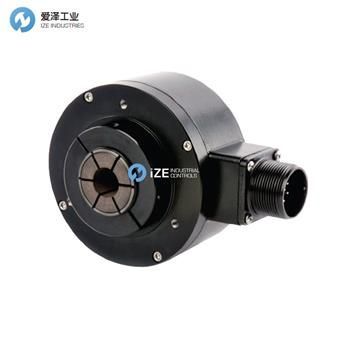

美國DYNAPAR編碼器 示例H2310240032X512選型參數表
美國DYNAPAR編碼器H2310240032X512產品參數
SPECIFICATIONS
Key Features
INCREMENTAL ENCODERS
SERIES H20 Dynapar? brand
Shafted Encoder
STANDARD OPERATING CHARACTERISTICS
Code: Incremental, Optical
Resolution: 1 to 2540 PPR (pulses/revolution)
Accuracy: (worst case any edge to any other edge)
<1024 PPR (metal disk): ±7.5 arc-min.
≥1024 PPR (glass disk): ±2.5 arc-min.
Format: Two channel quadrature (AB) with optional
Index (Z) and complementary outputs
Phase Sense: A leads B for CCW shaft rotation as
viewed from the shaft end of the encoder
Quadrature Phasing: 90° ± 22.5° electrical
Symmetry: 180° ± 18° electrical
Index: 180° ± 18° electrical (gated with B low)
Waveforms: Squarewave with rise and fall times
less than 1 microsecond into a load capacitance
of 1000 pf
ELECTRICAL
Input Power:
5 to 26 VDC at 80 mA max., not including output
loads
Outputs:
7273 Open Collector: 40mA, sink max
7272 Push-Pull: 40mA, sink or source
7272 Differential Line Driver: 40 mA, sink or
source
4469 Differential Line Driver: 100mA, sink or
source
Frequency Response: 100 kHz min. (index
75 kHz min. for extended temperature range)
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and short
circuit protected
Termination: MS Connector, M12 Connector,Cable Exit
Mating Connector:
6 pin, style MS3106A-14S-6S (MCN-N4);
7 pin, style MS3106A-16S-1S (MCN-N5);
10 pin, style MS3106A-18-1S (MCN-N6)
10 pin, NEMA4 style (MCN-N6N4)
Cable w/ 5 pin M12 Connector (112859-xxxx)
Cable w/ 8 pin M12 Connector (112860-xxxx)
MECHANICAL
Shaft Sizes: 10mm, 1/4” or 3/8”
Shaft Loading: (at 0.25” from encoder face)
Resolutions ≤1024 PPR: 80 lbs. radial, axial
Resolutions >1024 PPR: 40 lbs. radial, axial
Shaft Speed:
Resolutions ≤1024 PPR: 10,000 RPM max.
Resolutions >1024 PPR: 5,000 RPM max.
Starting Torque: (max at 25 °C)
without shaft seal: 1.0 oz-in;
with shaft seal: 2.0 oz.-in
Moment of Inertia: 3.0 x 10-4 oz–in–sec2
Housing and Cover: Aluminum
Shaft Material: Stainless Steel
Disk Material: Glass or plastic (PPR Dependant)
Weight: 10 oz. max.
ENVIRONMENTAL
Operating Temperature:
Standard: 0 to +70 °C;
Extended: 0 to +85 °C
Storage Temperature: –40 to +90 °C
Shock: 50 G’s for 11 milliseconds duration
Vibration: 5 to 2000 Hz at 20 G’s
Humidity: Up to 98% (non-condensing)
Enclosure Rating: NEMA12/IP54 (dirt tight,
splashproof); NEMA4/IP66 (dust proof, washdown)
when ordered with shaft seal and either
M12 connector or watertight cable exit
美國DYNAPAR編碼器H2310240032X512等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220060110432
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H22006011400B
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220060114023
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220060114107
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220060C22500PS
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H22008602201R
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220086104135
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220086100100
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220086C22532
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220090001223
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H2200900012CP
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H2200360110022
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220060110022
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H22006011002X57
DYNAPAR/NORTHSTAR/HENGSTLER編碼器H220060110422PS
DYNAPAR/NORTHSTAR/HENGSTLER編碼器HSD351024VA45
愛澤工業專業提供美國DYNAPAR編碼器H2310240032X512等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器H2310240032X512的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器H2310240032X512更詳細的信息或者購買美國DYNAPAR編碼器H2310240032X512相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:www.jjxdch.cn.

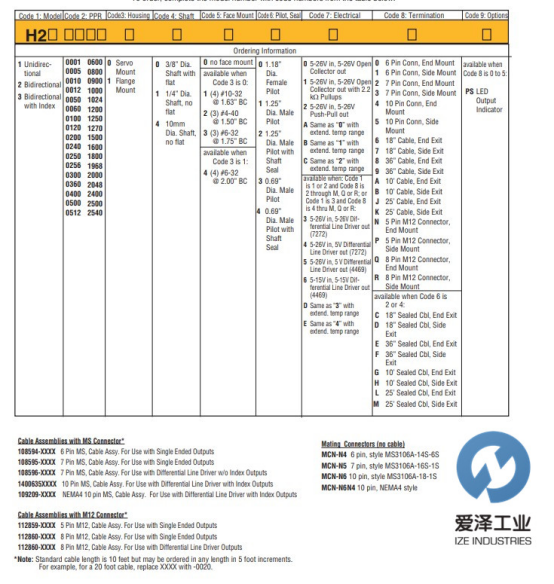

美國DYNAPAR編碼器H2310240032X512尺寸圖及選型參數表
