KUKKO 22系列拉馬 / 22-0系列滑錘裝置產品介紹

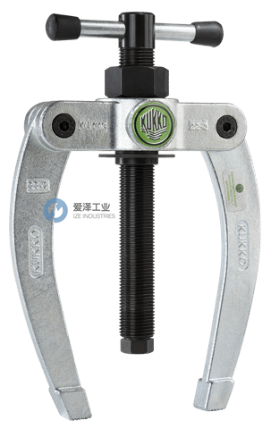

KUKKO拉馬22系列介紹及選型
描述 / Description
? 由于內提取器的彈簧機制，反向支撐上的拉馬爪可輕松調節。（尺寸1至3）
? 由于內置的壓力軸承，反支撐螺母的摩擦阻力被降到更低。（尺寸2至5）
? 由于它們的支撐柱，尺寸（4和5）的反向支撐特別適用于大型球軸承等，并確保在提取過程中保持穩定。
? 機械壓力螺絲。
? The arms on the counter supports are easy-to-adjust thanks to an internal spring mechanism. (size 1 to 3)
? The counter support nuts' friction resistance is reduced to a minimum as a result of the built-in pressure bearing (size 2 to 5).
? Thanks to their support struts, sizes (4 and 5) counter struts are particularly suited for large ball bearings, etc., and ensure that the assembly remains stable during the extraction process.
? Mechanical pressure screw.
特點 / Advantage
? 反向支撐可以結合內提取器和Kukko螺紋接頭。
? 幾乎所有部件都可以作為替換部件。
? The counter support can be combined with internal extractors and Kukko screw adapters.
? Almost all components available as replacement parts.
工作原理 / Functionality
? 反向支撐拉馬
? 內提取
? Counterstay
? Internal Extracting
安全信息 / Safety information
? 不使用任何電氣或氣動螺絲刀或錘鉆。
? 需要防護毯。
? 需要護目鏡。
? Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
? Protective blanket required.
? Protective goggles required.

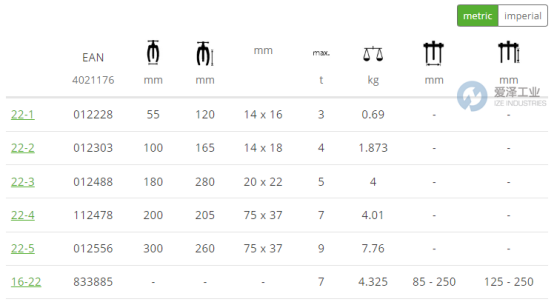

選型介紹 / Articles of this series

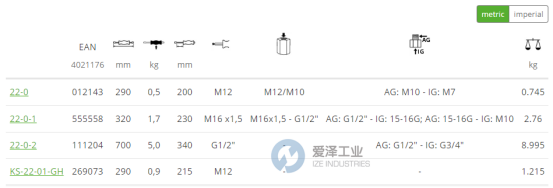

KUKKO滑錘22-0系列介紹及選型
描述 / Description
對內部軸承進行無接觸和小心的拉拔等。
符合人體工程學的形狀，固體滑動部件傳遞。
節省空間情況下帶強沖擊。
Contactless and careful pulling of internal bearings, etc.
Ergonomically-shaped, solid sliding parts for optimum transfer of force.
Space-saving with strong shock effect.
特點 / Advantage
無需支撐面。
提示：22-0-2 通過旋入一個或多個輔助配重 22-0-2-100，滑錘的沖擊力可增加 3 kg。
No supporting surface required.
TIP: 22-0-2 The impact of the slide hammer can be increased by increments of 3 kg by screwing in one or multiple supplementary weights 22-0-2-100.
工作原理 / Functionality

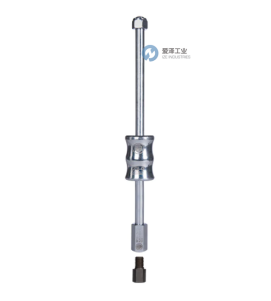

滑錘
內提取
Slide hammer
Internal Extracting
安全信息 / Safety information
不使用任何電氣或氣動螺絲刀或錘鉆。
需要防護毯。
需要護目鏡。
Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
Protective blanket required.
Protective goggles required.
選型介紹 / Articles of this series
