孔板限流器——類型和應用（中英文）
節流孔可用于調節空氣、氣體或液體流量，廣泛應用于啟動控制系統，咖啡機等各種應用。它們采用精密孔徑設計和制造，用于降低壓力和控制流量。節流孔可作為獨立裝置，也可作為組件、套件、節流器或節流閥使用。
了解更多關于不同類型的節流孔、其制造材質以及其適用的行業和應用。
Orifice restrictors regulate the flow of air, gases, or liquids in a variety of applications, from pneumatic control systems to coffeemakers. They are designed and manufactured with precision holes to reduce pressure and control flow. Orifice restrictors are available as individual devices or in assemblies, kits, restrictors, or restrictor valves.
Learn more about the different types of orifice restrictors, the materials they are made from, and the industries and applications where they are used.

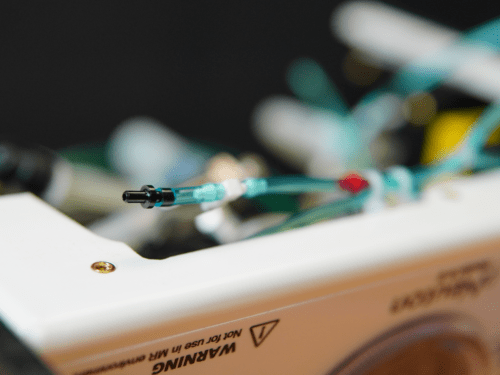

排放到大氣中的黑色節流孔可控制電路中的泄漏率。
Black orifice restrictor vented to the atmosphere provides a controlled leak rate in the circuit.
節流孔類型
Types of Orifice Restrictors
Air Logic 提供以下類型的節流孔：
模壓節流孔：這是受歡迎的設計。模壓節流孔是實現流量控制的最簡單方法，不同直徑尺寸采用顏色編碼。
節流孔插件：模壓節流孔的子集，最小尺寸選項，無需管道，可推入組件。
過濾節流孔：這些類型的節流孔用于減少上游污染。精密模壓節流孔中集成的不銹鋼過濾器可根據特殊應用進行定制。
螺紋節流孔：這些節流孔配有螺紋接頭，可輕松安裝到管道中。它們采用聚砜材質制成，可定制。
定向流量控制：這些節流孔使用圓盤限制物料在一個方向上的流動，同時允許物料在另一個方向上流動。流量會根據流動方向自動調整。
Air Logic offers orifice restrictors:
Molded orifices: These are our most popular designs. Molded orifices are the simplest way to provide flow control, and the different diameter sizes are color-coded.
Orifice Inserts: Subset of molded orifices, smallest option, no tubing required, push into an assembly
Filter orifices: These types of orifices are used to reduce upstream contamination. The integrated stainless steel filter in the precision-molded orifice can be customized for specialized applications.
Threaded orifices: With threaded fittings, these orifices can be easily installed into the pipeline. They are available in polysulfone material and can be customized.
Directional flow controls: These orifices use disks to restrict the flow of material in one direction and allow flow in the other. The flow adjusts automatically depending on the direction of the flow.
孔板限流器應用
Orifice Restrictor Applications
孔板限流器是眾多應用中的關鍵設備。
Orifice restrictors are crucial devices in numerous applications. Find out more about them below.
醫療
Medical
節流孔在許多醫療設備中發揮著重要作用。這些孔口需要提供高可靠性并符合衛生標準。使用節流孔的常見設備和裝置包括：
鎮痛設備：該設備用于施用輕度吸入麻醉劑以達到鎮靜效果。它依靠節流孔進行適當?shù)牧髁抗芾怼?/p>
麻醉機：麻醉機使用衛生級節流孔來控制流量。
診斷設備：當診斷設備需要調節液體或氣體流量時，會使用節流孔。
環境控制：醫學實驗室需要嚴格的環境控制，以最大限度地降低污染風險。某些控制空氣變量的設備依賴于節流孔。
牙科設備：在輸送一氧化二氮時，牙科設備使用節流孔來控制流速。
氣體控制系統：從氧氣呼吸器到氮?dú)怛?qū)動的手術器械，醫療行業高度依賴氣體控制系統。節流孔板能夠有效控制氣體流量和壓力。
輪床和病床：先進的輪床和病床均配備節流孔板來控制氣流。
液壓氣動控制系統：從研究實驗室到制藥廠，液壓氣動控制系統遍布醫療行業的各個角落。這些系統依靠節流孔板來調節不同介質的流量。
Orifice restrictors play an important role in many medical devices. These orifices need to provide high levels of reliability and meet hygienic standards. Common devices and equipment that use orifice restrictors include:
Analgesia equipment: This device administers a mild inhalation anesthetic for sedation. It relies on orifice restrictors for proper flow management.
Anesthesia machines: Anesthesia machines use sanitary orifice restrictors to control flow.
Diagnostic equipment: When diagnostic equipment needs to regulate the flow of a liquid or gas, an orifice restrictor is used.
Environmental controls: Medical laboratories demand strict environmental controls to minimize the risk of contamination. Certain pieces of equipment that control air variables depend on orifice restrictors.
Dental equipment: When administrating nitrous oxide, dental equipment uses orifice restrictors to control the rate of flow.
Gas control systems: From oxygen respirators to nitrogen-powered surgical tools, the medical industry relies heavily on gas control systems. Orifice restrictors properly manage gas flows and pressures.
Gurneys & hospital beds: State-of-the-art gurneys and hospital beds have orifice restrictors to control airflow.
Hydraulic pneumatic control systems: From research labs to pharmaceutical manufacturing, hydraulic pneumatic control systems are found throughout the medical industry. These systems depend on orifice restrictors to regulate flows of different media.
消費品
Consumer Products
如果消費品需要液體或氣體的流動，其組件中很可能會安裝節流孔。從咖啡機到CBD/THC蒸餾產品，從化學清潔產品到臭氧清潔劑，普通美國家庭都配備了節流孔。雖然許多消費品使用節流孔來控制流量和壓降，但它們也有助于防止氣蝕并降低噪音。
If a consumer product requires the flow of liquid or gas, there is a reasonable chance that an orifice restrictor can be found in its components. From coffeemakers to CBD/THC distillation products to chemical cleaning products to ozone cleaners, the average American household is full of orifice restrictors. While many consumer products use orifice restrictors to manage flow rates and pressure drops, they can also help prevent cavitation and reduce noise levels.
生命科學
Life Science
生命科學行業中有很多依賴節流孔的機械設備。與醫療行業類似，生命科學行業也需要高標準的衛生條件。使用節流孔的常見設備包括：
分析儀器：需要調節氣體或液體流量和壓力的分析儀器會配備節流孔。
生物反應器：生物反應器的應用范圍廣泛，包括食品、飼料、藥品和化學品加工。所有這些應用都需要不同程度地控制壓力和流量，因此需要使用節流孔。
氣體檢測：氣體檢測系統需要空氣能夠順暢流動，而不會引起與壓力或空化相關的問題。許多氣體檢測設備都配備節流孔，以確保其功能性和使用壽命。
流式細胞術：流式細胞術是一項復雜的技術，可對單個細胞進行多參數分析。除了使用激光器和策略性光源外，該技術還依靠節流孔來控制培養基的流動。
發光免疫分析儀：該設備用于檢測樣本中特定物質的存在和濃度。常用的介質包括血液或尿液。為了控制介質流量并調節壓力，該設備使用節流孔。
電泳：電泳是一種常用的技術，用于根據RNA、DNA或蛋白質分子的電荷和大小進行分離。這是通過使分子穿過凝膠或其他類型的基質來實現的。許多電泳儀使用節流孔來控制所用介質的流量和壓力。
The life science industry is full of machinery and equipment that depend on orifice restrictors. Much like the medical industry, high levels of sanitation are required. Common devices that utilize orifice restrictors include:
Analytical machines: Analytical machines that need to regulate the flow and pressure of gas or liquids incorporate orifice restrictors.
Bioreactors: Bioreactors are used in countless applications, including processing food, feed, pharmaceuticals, and chemicals. All of these will need to control pressure and flow to varying degrees, so they use orifice restrictors.
Gas detection: Gas detection systems need air to easily flow without causing problems related to pressure or cavitation. Many gas detection devices incorporate orifice restrictors for adequate functionality and longevity.
Flow cytometry: Flow cytometry is a sophisticated technique that provides a multi-parametric analysis of individual cells. In addition to using lasers and strategic light sources, this technology relies on orifice restrictors to control the flow of media.
Luminescence immunoassay analyzer: This device is used to detect the presence and concentration of specific substances in a sample. Common media include blood or urine. To control the flow of the medium and regulate pressure, this machinery uses orifice restrictors.
Electrophoresis: Electrophoresis is a common technique used to separate RNA, DNA, or protein molecules based on their electrical charge and size. This is achieved by moving the molecules through a gel or other type of matrix. Many electrophoresis machines use orifice restrictors to manage the flows and pressures of used media.
流量測量
Flow Measurement
節流孔可實現壓力管理和流量測量。這利用了伯努利原理：障礙物（節流孔）下游的壓力低于其上游的壓力。通過合理的工程設計和制造，節流孔可用于實現可靠的流量測量。
Orifice restrictor plates accomplish pressure management and flow measurement. This is done by utilizing the Bernoulli principle: the pressure downstream of an obstruction (the orifice restrictor) is lower than the pressure upstream of the obstruction. With the proper engineering and design, an orifice restrictor can be used to create reliable flow measurements.
噴墨打印
Inkjet Printing
噴墨打印依賴于墨水的可控流動。先進的噴墨打印機可能會使用其他材質，例如搪瓷和其他涂層。無論噴墨打印機的復雜程度如何，都很有可能使用節流孔。
Inkjet printing relies on the controlled flow of ink. Sophisticated inkjet printers may apply additional materials such as enamel and other coatings. No matter the complexity of the inkjet printer, there is a good chance that it uses an orifice restrictor.
噴嘴
Nozzles
噴嘴使用節流孔來調節壓力和體積流量，以滿足規格要求。
Nozzles use orifice restrictors to regulate both pressure and volumetric flow to meet specifications.
氣動控制
Pneumatic Controls
與電子控制不同，氣動控制系統利用壓縮空氣。壓縮空氣系統可以發送和接收信號來控制整個系統。節流孔是其關鍵部件。
Unlike electronic controls, pneumatic control systems utilize compressed air. The compressed air system can send and receive signals to control an overall system. Orifice restrictors are a key component.
粒子計數器
Particle Counting Devices
粒子計數器是至關重要的安全設備，廣泛應用于潔凈室和其他敏感的制造環境。它用于檢測室內空氣中的污染物和其他潛在有害顆粒。由于該設備依賴于空氣的流動和運動，因此節流孔是其設計中至關重要的一部分。
Particle counters are critical safety devices that are used in numerous applications, such as cleanrooms and other sensitive manufacturing environments. They test the room air for contaminants and other potentially harmful particles. As the device relies on the movement and flow of air, orifice restrictors are a crucial part of their design.
聲明：
-文章轉載自AIR LOGIC，由愛澤工業翻譯，如有侵權，請聯系刪除！
-如有偏頗，歡迎指正！
