PERMA PURE集團是一家全球性公司，為醫療和環境行業提供創新解決方案，以共同激勵更健康的生活為使命。Perma Pure將Perma Pure的氣體調節 Nafion? 技術與Maxtec的首要氧氣輸送系統相結合，以提供FiO2監測、傳感、樣品制備和氣流調節方面的解決方案。
PERMA PURE干燥管MD系列技術參數
Specifications | |
Nafion? Tubing Outer Diameter Options | 0.050″ (MD-050), 0.070″ (MD-070), 0.110″ (MD-110) |
Max. Flow Rate | 0.2 lpm (MD-050), 4 lpm (MD-070), 4 lpm (MD-110) |
Housing Materials Available | Polypropylene, Fluorocarbon, or Stainless Steel |
Max. Operating Temperatures | 80 °C for polypropylene housing, 100 °C for fluorocarbon or stainless steel housing |
Sample Gas Port – End Fitting Options | Port 1/16″ Compression (MD-050, Stainless Steel Only) Port 1/8″ Compression (All models) Port 1/4″ Compression (MD-070, MD-110) |
Purge Gas Port – End Fitting Size | Port 1/8″ Compression (MD-050) Port 1/4” Compression (MD-070, MD-110) |
Purge Gas Recommendations | Purge gas must be drier than sample gas |
Coiled Configurations | Certain models are shipped coiled based on length. See page 4 for nominal diameters. Contact us for custom coiled solutions. |
PERMA PURE干燥管MD系列介紹
Perma Pure氣體干燥器采用 Nafion?管，可選擇性地去除氣體樣品中的水分。這種對水蒸氣的選擇性使干燥器比其他氣體干燥解決方案能夠去除更多的水分，同時保留氣體樣品中的分析物。
單管干燥器系列（MD 系列）氣體干燥器包含一根 Nafion?管。MD 系列可將氣體干燥至低至 -40 °C 露點的濕度水平，是流量高達 4 升/分鐘的應用的理想選擇。
Powered by Nafion? tubing, Perma Pure gas dryers selectively remove water from a gas sample. This selectivity for water vapor allows our dryers to remove more moisture than other gas drying solutions, while keeping analytes in the gas sample.
Monotube Dryer Series (MD-Series) gas dryers contain a single Nafion? tube. The MD-Series can dry a gas to humidity levels as low as –40 °C dew point and is ideal for applications with flow rates up to 4 lpm.

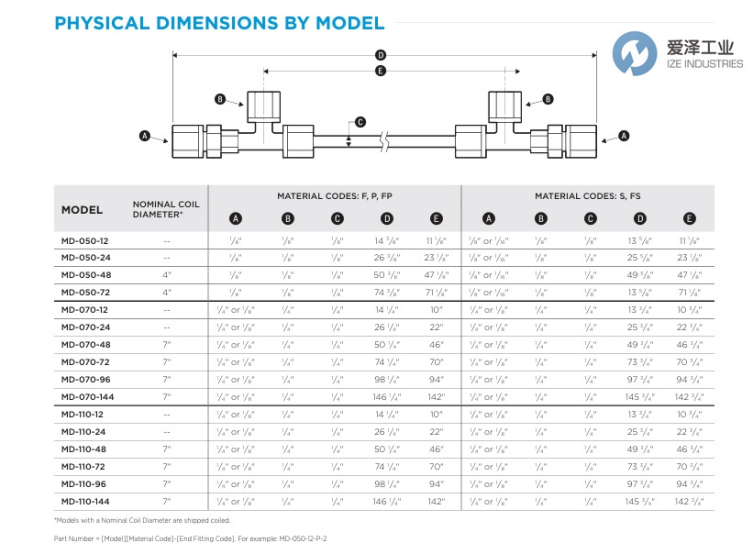

PERMA PURE干燥管MD系列規格尺寸
PERMA PURE干燥管MD系列其他常用型號：
PERMA PURE MD-050-12
PERMA PURE MD-050-24
PERMA PURE MD-050-48
PERMA PURE MD-050-72
PERMA PURE MD-070-12
PERMA PURE MD-070-24
PERMA PURE MD-070-48
PERMA PURE MD-070-72
PERMA PURE MD-070-96
PERMA PURE MD-070-144
PERMA PURE MD-050-48S-1
PERMA PURE Desiccator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PERMA PURE干燥管MD-050-48S-1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PERMA PURE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
PERMA PURE干燥管MD系列MD-050-48S-1技術參數及介紹
