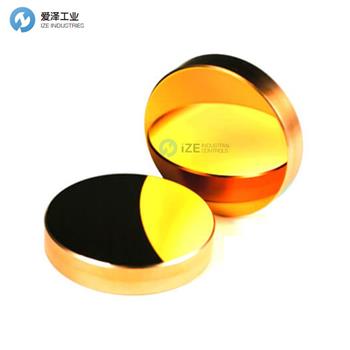

IIVINFRARED反光相位延遲器748680規格描述
Specifications | Standards |
Dimensional Tolerance | Diameter: +0.000"/-0.005" Thickness: 0.010" |
Parallelism | ≤3 arc minutes |
Clear Aperture (polished) | 90% of diameter |
Surface Figure (power/irregularity) at 0.63μm | ≤2 fringe/? fringe |
Scratch-Dig | 10-5 |
Reflectivity @ 10.6μm | ≥98% |
Phase Retardation for 10.6μm @ 45o | 90o±3o |
Ellipticity Ratio | 0.90-1.11 |
IIVINFRARED反光相位延遲器產品介紹及選型
金屬切割和其他重要的激光操作對切縫寬度或橫截面的任何變化都很敏感。切縫的質量取決于相對于切割方向的偏振方向。
當前的理論表明，只有在切割開始時，聚焦光束才以垂直入射角撞擊工件的假設才是正確的。切口形成后，光束會以較大的入射角θ遇到金屬。相對于這樣的表面，s偏振的光比p偏振的光反射得多，從而導致切割質量的差異。
在光束傳輸路徑中引入四分之一波（90°）反射相位延遲器（RPR），可以通過將線性偏振轉換為圓偏振來消除切縫變化。對于任何光束方向，圓偏振都由相等數量的s偏振和p偏振組成，因此所有軸都遇到相同的偏振成分，并且無論切割方向如何，材料都被均勻去除。
調整線偏振光束的方向，使偏振平面與入射平面成45°角，并與法線成45°入射到RPR。反射光束是圓偏振的。
Metal cutting and other critical laser operations are sensitive to any variation in kerf width or cross-section. The kerf’s quality depends on the polarization orientation relative to the cut direction.
Current theory suggests that the assumption of a focused beam striking the work piece at normal incidence is only true at the cut’s beginning. Once the kerf forms, the beam encounters metal at some large angle of incidence, Θ. Light which is s-polarized with reference to such a surface is reflected much more than light which is p-polarized, leading to the difference in cut quality.
Introducing a quarter-wave (90°) reflective phase retarder(RPR) into the beam delivery path eliminates kerf variations by converting linear polarization to circular polarization. Circular polarization consists of equal amounts of s-polarization and p-polarization for any beam orientation, therefore all axes encounter the same composition of polarization, and material is removed uniformly regardless of cut direction.
A linearly polarized beam is oriented so that the plane of polarization is 45° to the plane of incidence and strikes the RPR at 45° to the normal. The reflected beam is circularly polarized.

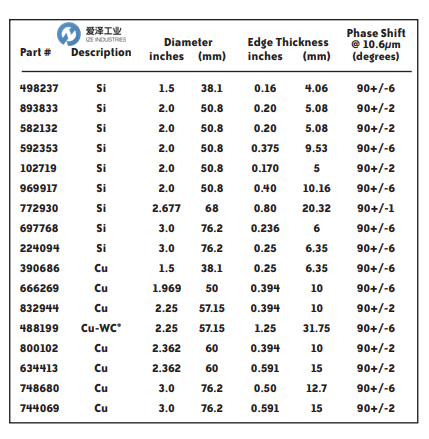

IIVINFRARED反光相位延遲器其他型號：
IIVINFRARED 498237
IIVINFRARED 893833
IIVINFRARED 582132
IIVINFRARED 592353
IIVINFRARED 102719
IIVINFRARED 969917
IIVINFRARED 772930
IIVINFRARED 697768
IIVINFRARED 224094
IIVINFRARED 390686
IIVINFRARED 666269
IIVINFRARED 832944
IIVINFRARED 488199
IIVINFRARED 800102
IIVINFRARED 634413
IIVINFRARED 748680
IIVINFRARED 744069
IIVINFRARED Weighing transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于IIVINFRARED反光相位延遲器748680的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for IIVINFRARED products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
IIVINFRARED反光相位延遲器748680產品參數
