KENCO液位控制器KPFS-2-LR技術參數
Model | KPFS |
Process Connection* | 2 = 2" Threaded MNPT |
Application | LR = Level Rising |
KENCO液位控制器KPFS系列介紹

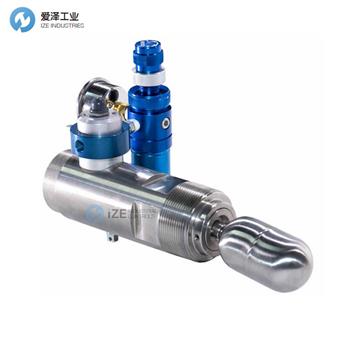

KPFS 氣動浮球開關
KENCO KPFS 型號使用浮球以確定容器中在過程連接處是否存在液體。浮球桿組件的一端是浮球，另一端是磁鐵。當容器中的液位上升時，浮球上升，磁鐵下降。磁鐵激活壓邊另一側的第二個磁鐵。這個第二個磁鐵是快速反應開關中的反應組件，該開關能夠打開和關閉氣動閥門。由于設計的特點，通常不需要進行調節，如需調整，提供了一個易于使用的調節螺釘。KPFS 型號用于啟動氣動排放閥，例如 KDV 系列排放閥，用于控制洗滌器、分離器和其他容器中的液體。壓力邊界不含任何密封件；它是一個固體不銹鋼屏障，可以通過磁場，但不允許液體通過。通過此屏障，工藝液體不可能進入開關殼體。KPFS 氣動浮球開關可以訂購為在檢測到液位上升時打開氣動閥（-LR 選項）或在檢測到液位下降時打開氣動閥（-LF 選項）。如有需要，提供手動閥門驅動器以手動打開閥門。
特點：
簡易安裝：開關可以使用簡單的手工具輕松安裝在容器壁的過程連接處。
KFC 外部浮球室可用于間接開關容器安裝。
氣動閥門壓力范圍為 30 至 75 psig（2.06 至 5.17 bar）。
不銹鋼主體：包括開關主體在內的所有濕部件均由 303/304 不銹鋼制成。
不銹鋼浮球：浮球材料為 304 不銹鋼。
無密封開關屏障：磁性開關驅動器通過實心不銹鋼屏障運作。工藝和開關隔艙之間沒有可能導致開關失效的密封件。
手動閥門驅動器提供手動打開氣動閥的方式。
可選過濾器/壓力調節器，可確保提供的空氣或氣體經過過濾和調節，從而提高系統的使用壽命和性能。
KPFS Pneumatic Float Switch
The KENCO Model KPFS uses a float to determine the presence or absence of liquid in a vessel at the process connection. The float arm assembly consists of a float at one end and a magnet at the other. As the level in the vessel rises, the float rises and the magnet falls. The magnet actuates a second magnet on the other side of the pressure boundary. This second magnet is the reactive component in the snap acting switch that opens and closes the pneumatic valve. Because of the nature of the design, adjustment is rarely, if ever needed. In the event that adjustment is needed, an easy to use adjustment screw is provided. The Model KPFS is used to actuate pneumatic dump valves, such as the Model KDV Series Dump Valve, to control liquids in scrubbers, separators and other vessels. The pressure boundary contains no seals; it is a solid stainless steel barrier that passes a magnetic field, but no liquids. It is impossible for the process liquid to enter the switch enclosure through this barrier. The Model KPFS Pneumatic Float Switch can be ordered to have the pneumatic valve open when it senses a liquid level rising (-LR option) or open when it senses the liquid level falling (-LF option). A manual valve actuator is provided to open the valve manually, if desired.
Features
Simple Installation – Switch can be easily installed at the process connection in the vessel wall with simple hand tools.
KFC External Float Chamber available for indirect switch vessel mounting
Pneumatic valve pressure range of 30 to 75 psig (2.06 to 5.17 bar).
Stainless Steel Body – All wetted parts including switch body are manufactured from 303/304 Stainless Steel.
Stainless Steel Float – Float material is 304 Stainless Steel
Sealless Switch Barrier – Magnetic switch actuator operates through a solid stainless steel barrier. There are no seals between the process and the switch compartment that could potentially cause a switch failure.
Manual valve actuator provides a means to manually open the pneumatic valve.
Optional filter/pressure regulator available to ensure supplied air or gas is filtered and regulated to improve system life and performance.
KENCO液位控制器KPFS系列其他常用型號：
KENCO KPFS-2-LR-R
KENCO KPFS-2-LF
KENCO KPFS-2-LR
