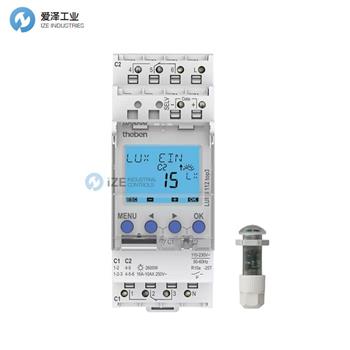

THEBEN 傳感器LUNA 112 top3 EL規格描述
Technical data | |
Operating voltage | 110 V AC - 230 V AC |
Frequency | 50 - 60 Hz |
Number of channels | 2 |
Stand-by consumption | ~0.8 W |
Setting range brightness | 1 - 99000 lx |
Preset brightness value | 15 lx |
Switch-on delay | 0 - 59 min |
Switch-off delay | 0 - 59 min |
Type of contact | Two-way changeover contact |
Width | 2 modules |
Installation type | DIN rail |
Type of connection | DuoFix spring terminals |
Display | LCD-Display |
Keyboards | 4 touch buttons |
Switching capacity | 16 A at 250 V AC, cos φ = 1, 10 A at 250 V AC, cos φ = 0.6 |
Incandescent/halogen lamp load | 2600 W |
Halogen lamp load | 2600 W |
Fluorescent lamp load (conventional) not corrected | 2600 VA |
Fluorescent lamp load (conventional) parallel-corrected | 130 μF |
LED lamp < 2 W | 50 W |
LED lamp 2-8 W | 600 W |
LED lamp > 8 W | 600 W |
Inrush current | max. 800 A / 200 μs |
Sensor (included) | Flush-mounted light sensor |
Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
Ambient temperature | -25°C ... 55°C |
Type of protection | IP 20 |
Protection class | II, Sensor III |
Max. cable length to sensor | 100 m |
THEBEN傳感器LUNA 112 top3 EL介紹
功能描述
光照水平控制器
出廠配備外部光傳感器
具備2個通道
可通過應用程序進行編程
通過可選的藍牙低能耗OBELISK top3安全傳輸
操作安全性，僅在OBELISK top3藍牙設備插入時，程序才能從應用程序傳輸?shù)綍r(shí)間開關
數字調節切換亮度
可調節的開關和關斷延時
開關亮度和延時可以分別為打開和關閉進行設置
屏幕顯示通道狀態、切換狀態以及當前照度值
DuoFix彈簧端子
零交叉切換，節能切換，適用于高負載燈具
最多可連接4個傳感器
最多可將10個設備連接到數字傳感器
支持OBELISK top2存儲卡接口（用于電腦編程）
擴展的亮度范圍
常開/常關切換
測試功能
預設切換模式
背光顯示（可關閉）
PIN編碼保護
運行小時數計數器
Function description
Light level controller
External light sensor included in delivery
2 channels
Programming by app possible
Safe transfer via optional Bluetooth Low Energy OBELISK top3
Maximum manipulation security, programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the device
Switching brightness digitally adjustable
Adjustable On and Off switching delay
Switching brightness and switching delay can be set separately for switching On and Off
Onscreen display of channel and switching status as well as current lux value
DuoFix spring terminals
Zero-cross switching for relay-saving switching and high lamp loads
Up to 4 sensors can be attached
Up to 10 devices can be connected to a digital sensor
Interface for OBELISK top2 memory card (PC programming)
Extended brightness range
Permanent switching ON/OFF
Test function
Switching preselection
Display back light (can be turned off)
PIN coding
Operating hour counter
THEBEN傳感器其他常用型號：
THEBEN LUNA 112 top3 EL
THEBEN LUNA 112 top3 AL
THEBEN LUNA 112 top2 AL
THEBEN LUNA 112 top2 EL
