NOVOTECHNIK線性傳感器LWX系列技術參數
Description | |
Housing | aluminium, anodized |
Mounting | see drawing |
Guard tube | stainless steel (1.4301 or 1.4307) |
Actuating rod | stainless steel (1.4305), rotatable |
Bearings | metal-polymer slide bearing |
Resistance element | conductive plastic |
Wiper assembly | precious metal multi-finger wiper, elastomer damped |
Electrical connections | 4-pin round connector M12x1 or |

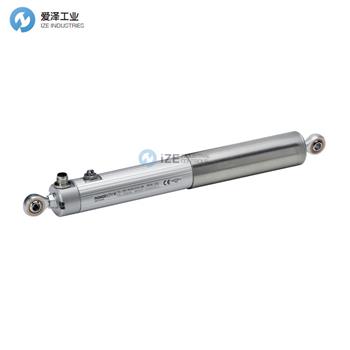

NOVOTECHNIK線性傳感器LWX系列介紹
為極端操作環境而設計，LWX系列采用全金屬結構，并配備專利的壓力平衡技術，可防止積聚物影響機械、車輛、自動化和機器人應用中的正常運行，確保延長使用壽命。這些堅固的位置傳感器可以直接測量位移或長度。安裝在執行桿上的自由支點頭可消除反沖，確保高精度。
特殊特點：
防護等級 IP67
全金屬外殼
耐腐蝕性能強
采用專利差壓補償系統，抵消推桿運動的泵效應
軸保護設計
高抗振性
適用于惡劣環境（濕度、油、塵埃）
雙軸承執行桿
可通過低背隙樞軸頭安裝，具有較大的自由運動角度（±12.5°）
出色的線性度，達±0.04%
分辨率優于0.01毫米
壽命長達5000萬次運動（視具體應用而定）
提供電纜或連接器版本
IP65版本，詳見數據表LWG
非軸保護版本，詳見數據表LWX，型號001
Designed for extreme operating environments, the LWX series features all-metal construction and patented pressure equalization Technology to prevent buildup that could degrade operation in mechanical, vehicle, automation and
robotic applications where an extended operating life is essential.
These rugged position transducers provide direct, absolu te measurement of displacement or length. A free-pivothead mounted on the actuating rod eliminates backlash guaranteeing high accuracy
Special features
protection class IP 67
all-metal housing
corrosion resistant
patented differential pressure compensation system compensates for pump effect of push rod movement
shaft protected
high vibration resistance
suitable for harsh environ mental conditions (humidity,oil, dust)
double beared actuating rod
mountable via low-backlash pivot heads with a large angle of free movement(up±12.5 °)
outstanding linearity up to ±0.04 %
resolution better than 0.01 mm
long life up to 50 million movements, depending on application
cable or connector version available
version IP65 see data sheet LWG
non-shaft protected version see data sheet LWX, model 001
NOVOTECHNIK線性傳感器其他常用型號：
NOVOTECHNIK LWX-0050-002
NOVOTECHNIK LWX-0075-002
NOVOTECHNIK LWX-0100-002
NOVOTECHNIK LWX-0150-002
NOVOTECHNIK LWX-0175-002
NOVOTECHNIK LWX-0225-002
NOVOTECHNIK LWX-0250-002
NOVOTECHNIK LWX-0300-002
NOVOTECHNIK LWX-0360-002
NOVOTECHNIK LWX-0450-002
NOVOTECHNIK LWX-0500-002
NOVOTECHNIK LWX-0600-002
NOVOTECHNIK LWX-0750-002
NOVOTECHNIK TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NOVOTECHNIK線性傳感器LWX-0360-002的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NOVOTECHNIK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
NOVOTECHNIK線性傳感器LWX系列LWX-0360-002技術參數及選型
