SENSOREX傳感器SX20MER系列產品介紹
Dimensions | |||||||
Electrical stroke | A (mm) | A (mm) (SX20MEC2R) | B ±0.5 | C (mm) | D ±2mm (for SX20MEC2R) | ||
(mm) | swivel joints option for | ||||||
SX20MER) | |||||||
±2.5mm | 40 | 57.5 | 99 | 199 | 208 | ||
±5mm | 40 | 57.5 | 99 | 199 | 208 | ||
±10mm | 55 | 72.5 | 115 | 230 | 239 | ||
±15mm | 65 | 82.5 | 144 | 269 | 278 | ||
±25mm | 80 | 97.5 | 173 | 313 | 322 | ||
±50mm | 125 | 142.5 | 259 | 444 | 453 | ||
±100mm | 205 | 222.5 | 400 | 665 | 674 | ||
±150mm 250 | / | 495 805 | / | ||||
Environmental characteristics | |||||||
Operating temperature | -40°C to +85°C | ||||||
Vibrations | 10grms (20Hz to 2000Hz) | ||||||
Shocks | 100g/ 11ms | ||||||
Protection | IP 66 (SX20MER) & IP67 (SX20MECR/SX20MEC2R) | ||||||
Electronic board protection | Tropicalization | ||||||
General specifications at | +25°C | ||||||
Electrical stroke | ±2.5mm to ±150mm | ||||||
Power supply | 24Vdc ±10Vdc | ||||||
Consumption (except current output) | 15mA typical, 30mA max | ||||||
Calibrated current output | 4-20 mA ±1% | ||||||
Maximum acceptable load | (V power supply-3)/0.02Ω | ||||||
Calibrated voltage output | 0/10V ±1% | ||||||
Voltage output impedance | 500Ω | ||||||
Non linearity | <0.25% of FS | ||||||
<0.50% of FS for stroke ±150mm | |||||||
Output accuracy | <0.50% of FS | ||||||
<1% of FS for strokes ±2.5mm/ ±5mm & ±150mm | |||||||
Bandwidth | 375Hz ±10% (2nd order) | ||||||
Noise | <10mV peak to peak, <3mVrms | ||||||
Zero thermal drift | <80ppm/°C /FS | ||||||
Sensitivity thermal drift | <300ppm/°C/measure | ||||||
SENSOREX傳感器SX20MER系列產品介紹

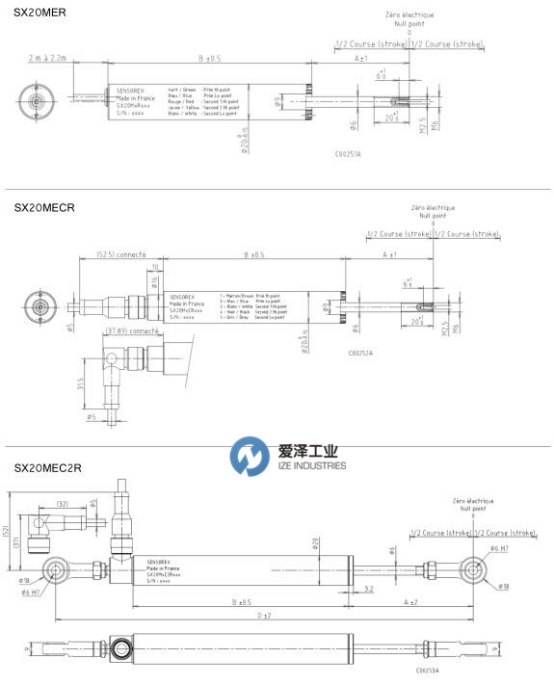

SENSOREX傳感器SX20MER系列產品尺寸圖

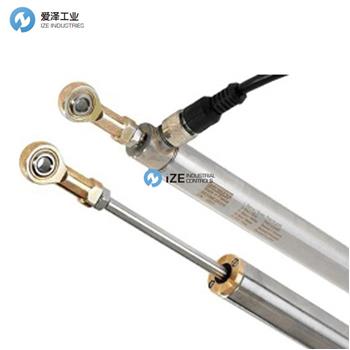

Meggitt (Sensorex) SX20MER/MECR/MEC2R series combine the advantages of LVDT technology (strength, reliability, contactless) with integrated electronics.
Meggitt（Sensorex）SX20MER / MECR / MEC2R系列結合了LVDT技術的優點（強度，可靠性，非接觸式）集成電子設備。
愛澤工業(IZE INDUSTRIES)特價經銷、常用SENSOREX傳感器型號：
SENSOREX SX20MER
SENSOREX SX20MECR
SENSOREX SX20MEC2R
SENSOREX 690150502
SENSOREX 690150503
SENSOREX 690150505
SENSOREX 690150512
SENSOREX 690150513
SENSOREX 690150515
SENSOREX 690150522
SENSOREX 690150523
SENSOREX 690150525
SENSOREX 690150532
SENSOREX 690150533
SENSOREX 690150535
SENSOREX 690150542
SENSOREX 690150543
SENSOREX 690150545
SENSOREX 690150552
SENSOREX 690150553
SENSOREX 690150555
SENSOREX 690150562
SENSOREX 690150563
SENSOREX 690150565
SENSOREX 690150572
SENSOREX 690150573
SENSOREX 690150590
SENSOREX 690150405
SENSOREX 690150406
SENSOREX 690150407
SENSOREX 690150408
SENSOREX 690150409
SENSOREX 690150580
SENSOREX 690150582
SENSOREX 690150583
SENSOREX 690150584
SENSOREX 690150585
SENSOREX 690150586
SENSOREX 690150587
SENSOREX sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于SENSOREX傳感器SX20MER系列的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SENSOREX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
