REXROTH閥L8_10… (ED1-Z)系列技術參數
General | |
Valve element with 2 solenoids | 1.55 kg (3.42 lbs) |
Valve element with 1 solenoid | 1.25 kg (2.76 lbs) |
Valve element with 2 solenoids, with lever type emergency | 1.9 kg (4.2 lbs) |
Valve element with 1 solenoid, with lever type emergency | 1.6 kg (3.5 lbs) |
Ambient Temperature | –20 °C....+50 °C (-4 °F....+122 °F) (NBR seals) |
MTTFd | 150 years |
Hydraulic | |
Maximum inlet flow | 30 l/min (7.9 gpm) |
Hydraulic fluid | Mineral oil based hydraulic fl uids HL (DIN 51524 part 1). |
Fluid Temperature | –20 °C ....+80 °C (-4 °F....+176 °F) (NBR seals) |
Permissible degree of fl uid contamination | ISO 4572: βx≥75 X=12...15 |
Viscosity range | 5....420 mm2/s |
Electrical | |
Voltage type | DC (AC only with RAC connection) |
Voltage tolerance (nominal voltage) | -10 % .... +10 % |
Duty | Continuous, with ambient temperature ≤ 50°C (122°F) |
Coil wire temperature not to be exceeded | 150 °C (302 °F) |
Insulation class | H |
Compliance with | Low Voltage Directive LVD 73/23/EC (2006/95/EC), 2004/108/EC |
Coil weight with connection EN 175301-803 | 0.215 kg (0.44 lbs) |

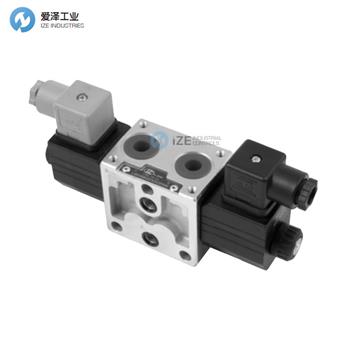

REXROTH閥L8_10… (ED1-Z)系列介紹
帶電磁控制方向閥芯的閥芯。
控制閥芯由帶可拆卸線圈的電磁閥控制。
斷電狀態下，控制閥芯由復位彈簧保持在中間位置。
直流線圈采用濕式針管，帶推桿用于機械超控；表面鍍鎳。
線圈可繞管旋轉 360°；可通過帶整流器 (RAC) 的特殊連接器接入交流電。
可選配手動超控（按鈕式或螺旋式）
Valve elements with solenoid operated directional spool.
Control spools operated by solenoids with removable coils.
In the de-energized condition, the control spool is held in the central position by return springs.
Wet pin tubes for DC coils, with push rod for mechanical override; nickel plated surface.
Coils can be rotated 360° around the tube; they can be energized by AC current through special connectors with rectifi er (RAC).
Manual override (push-button or screw type) available as option

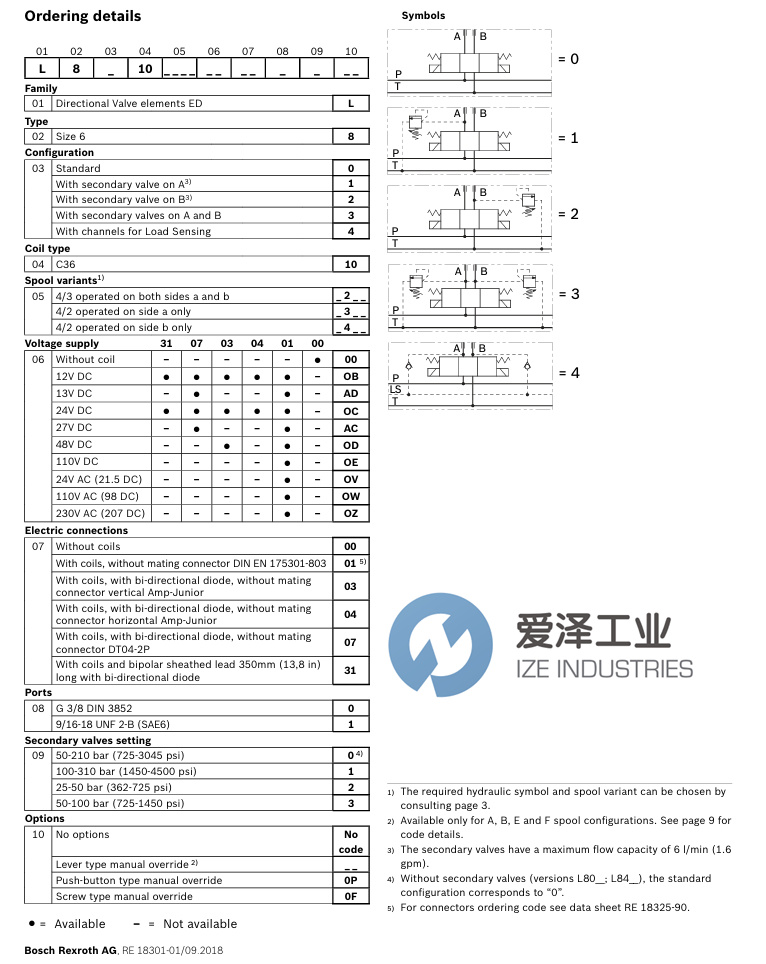

REXROTH閥L8_10… (ED1-Z)系列選型
REXROTH閥L8_10… (ED1-Z)系列其他常用型號：
REXROTH L8010E201000000 R933002238
REXROTH L8011E201000020 R933002302
REXROTH L8011E201000000 R933002301
REXROTH L8011C201OC0100 R933002296
REXROTH L8011B201OC0100 R933002281
REXROTH L8011B201OB0120 R933002277
REXROTH L8011B201000020 R933002273
REXROTH L8011B201000000 R933002272
REXROTH L8010Y301000000 R933002261
REXROTH L8010X301OC0100 R933002257
