AMT離心泵285K-95產品參數
Pump Dimensional & Specification Data | |
Model | 285K-95 |
Curve | D |
HP | 1? |
PH | 3 |
ENC | TEFC |
Voltage @ 60 Hz | 230/460 |
Full Load Amps | 5/3 |
SUC | 1? |
DIS | 1? |
L | 18.3 [46.5] |
W | 8.8 [22.3] |
H | 8.6 [21.8] |
Ship Wt. (Lbs.) | 56 |
AMT離心泵介紹
AMT自吸鑄鐵離心泵專為循環、增壓、沖洗、液體輸送和排水應用而設計。雙蝸殼設計減少了電機上的徑向負載。中心線排放功能專為防止蒸汽閉鎖設計，便于管道連接。所有型號都配備自清潔、半開式葉輪。這些裝置可自吸至20英尺。安裝基座具有7/16″的安裝孔，間距為6″。內置的手柄便于攜帶。
? 鑄鐵結構
? Buna-N機械密封和O型圈
? 可選Viton?或硅化碳機械密封和O型圈
? 1?和1-1/4? NPT吸入和排放口
? 最高溫度180°F
? 最大流量82 GPM
? 最大揚程70英尺
? 自吸至20英尺
? 自清潔、半開式葉輪
? 1/3至1-1/2 HP單相或三相電機
Description

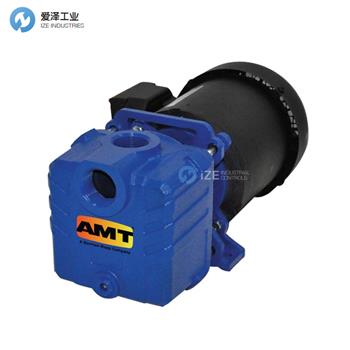

The AMT Self-Priming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open impeller. The units will selfprime to 20 feet. Mounting base features 7/16″ mounting holes, which are 6″ OC (on center). Built-in carrying handle offers portability.
? Cast Iron Construction
? Buna-N Mechanical Seal and O-Ring
? Optional Viton? or Silicon Carbide Mechanical Seal and O-Ring
? 1? & 1-1/4? NPT Suction and Discharge Ports
? Maximum Temperature 180° F
? Maximum Flow 82 GPM
? Maximum Head 70 Ft.
? Self-Priming to 20 Ft.
? Self-Cleaning, Semi-Open Impeller
? 1/3 to 1-1/2 HP Single or Three Phase Motors
AMT離心泵其他常見型號：
AMT 2851-95
AMT 285E-95
AMT 2852-95
AMT 285F-95
AMT 285P-95
AMT 2853-95
AMT 285G-95
AMT 285J-95
AMT 2855-95
AMT 285H-95
AMT 285K-95
