TOKIMEC閥COM-7系列技術參數
Specifications | |
Model Code | COM-7 |
Rated Pressure | 24.5 Mpa |
Allowable Tank Port Back Pressure | Intermal drain: 13.7 Mpa |
Max. control flow | 130 L/min |
Min. control flow | 3 L/min |
Pilot pressure | More than 2 Mpa |
Hysteresis | omitted: less than 7%, F11: less than 14% |
Repeatability | Less than 1% of max. flow |
Flow setting | Solenoid a, b 100 divisions each |
Min. working time | 70 ms |
Acceleration-deceleration time setting | 0 to 9.9s (0.1s unit)/0 to 9.99s (0.01s unit) switchable |
Ambient temperature | 0~60 ℃ |
Fluid temperature | 7~60 ℃ |
Fluid viscosity | 20~300 mm2/s |
Vibration resistance | 45 m/s2 (JIS D1601) |
Shock resistance | 300 m/s2 (JIS C 0041) |
Waterproof, dustproof | IP54 (control SH, CH, AN) |
Supply voltage | DC 21.6~28V |
Max. power consumption | 40 W (DC 24V, 1.67 A) |
Weight | 12 kg |
TOKIMEC閥COMINCA系列介紹
COMINCA閥門提供獨立的加速和減速設定，這對于無沖擊操作至關重要。高速定位是傳統無沖擊閥門難以實現的，并且速度可調。
內置微處理器，可設置所需參數，避免閥門間差異。按鈕操作，同時監控集成數字指示器，可實現簡單、可重復的設定和調整。手持式設定器也可進行與閥門安裝式相同的設定操作。
緊湊、節省空間的設計，與標準電磁閥具有相同的配置和堅固的結構。易于使用的設計，方便操作、安裝和維護，并具有手動超控銷（用于斷電閥門的操作確認）和減少接線等功能。
可像標準電磁閥一樣連接到通用繼電器、PLC等。
COMINCA valves offer independent setting for acceleration and deceleration which is indispensable for shockless operation. High speed positioning which is difficult with conventional shockless valves and adjustable speed setting is possible.
Onboard microprocessor allows setting of required parameters without valve to valve variation. Push button operation while monitoring the integrated digital indicator enables simple,repeatable setting and adjustment. Handheld setting device also available for same setting operation as valve mounted type.
Compact, space-saving design with same configuration and robust construction as standard solenoid valves. Ease-of-use design facilitates operation as well as installation and maintenance with features such as manual overide pins (for operation confirmation of deenergized valve), and reduced wiring.
Can be connected to general purpose relays, PLCs, etc, like standard solenoid valves.

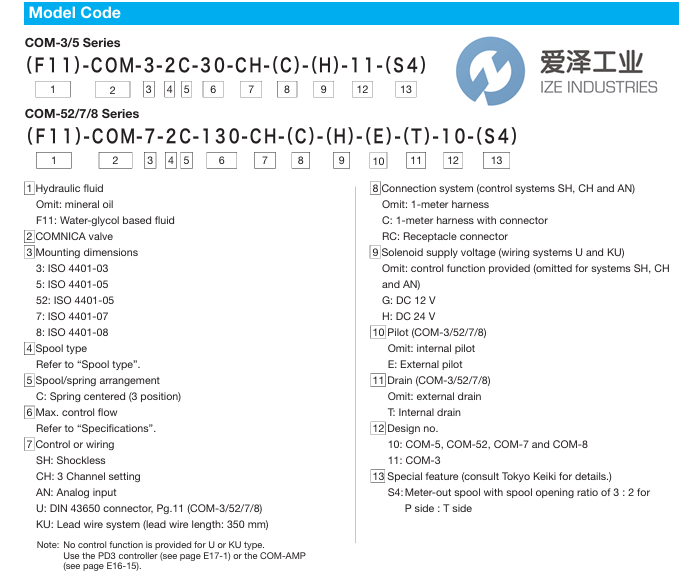

TOKIMEC閥COMINCA系列選型
TOKIMEC閥COMINCA系列其他常用型號：
TOKIMEC COM-7-31C-130-T-PH1-30
TOKIMEC COM-7-31C-130-AN-T-10
TOKIMEC COM-3
TOKIMEC COM-5
TOKIMEC COM-52
TOKIMEC COM-8
TOKIMEC COM-7
TOKIMEC valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TOKIMEC閥COM-7-31C-130-T-PH1-30的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TOKIMEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
TOKIMEC閥COMINCA系列COM-7-31C-130-T-PH1-30技術參數及選型
