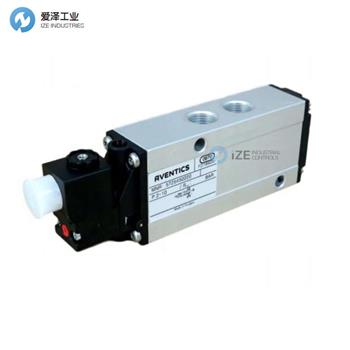

AVENTICS閥5725450220技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 4100 l/min |
Switching principle | 5/2 |
Compressed air connection output | G 1/2 |
Working pressure min | .2 bar |
Working pressure max | 10 bar |
DC operating voltage | 24 V |
Voltage tolerance DC | -1 |
Manual override | without detent, with detent |
Electrical connection type | Plug |
Electrical connection size | EN 175301-803, form A |
Electrical connection number of poles | 3-pin |
Actuating control | Single Solenoid |
Sealing principle | Soft Seal |
Pilot | Internal |
Pilot valve width | 30 mm |
Valve type | Spool valve, positive overlapping |
Connection type | Pipe connection |
Return | with air spring return |
Control pressure min. | 2 bar |
Control pressure max. | 10 bar |
Min. ambient temperature | -25 °C |
Max. ambient temperature | 50 °C |
Min. medium temperature | -25 °C |
Max. medium temperature | 50 °C |
AVENTICS閥CD12系列介紹
AVENTICS CD 系列由各種滑閥組成，具有極其耐用的壓鑄鋅外殼。其電氣、氣動或機械驅動控制裝置（滾輪、杠桿、踏板或柱塞）使 CD 系列成為惡劣環境中應用的理想選擇。
耐用的設計
組裝在底板上
適用于極端環境溫度
耐電壓波動
提供 ATEX 版本
The AVENTICS Series CD consists of various spool valves with an extremely durable die-cast zinc housing. Its electrical, pneumatic, or mechanical actuating controls (roller, lever, pedal, or plunger) make the Series CD ideal for applications in harsh environments.
Durable design
Assembly on base plate
Suitable for extreme ambient temperatures
Resistant to voltage fluctuations
ATEX version available
AVENTICS閥CD12系列其他常用型號：
AVENTICS 5725400220
AVENTICS 5725405202
AVENTICS 5725405270
AVENTICS 5725405280
AVENTICS 5725450220
AVENTICS 5725455202
AVENTICS 5725455270
AVENTICS 5725455280
AVENTICS 5725455302
AVENTICS 5725470220
AVENTICS DIRECTIONAL VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS閥5725450220的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
AVENTICS閥CD12系列5725450220技術參數介紹
