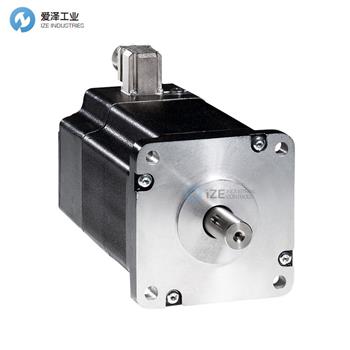

SCHNEIDER伺服電機BRS39BW460ACA技術參數
Specifications | |
Main | |
Range compatibility | Lexium SD3 |
Product or component type | Motion control motor |
Device short name | BRS3 |
Maximum mechanical speed | 3000 rpm |
Motor type | 3-phase stepper motor |
Number of motor poles | 6 |
Supply voltage limits | 230 V AC |
Mounting support | Flange |
Motor flange size | 85 mm |
Length | 171 mm |
Centring collar diameter | 60 mm |
Complementary | |
centring collar depth | 2 mm |
Number of mounting holes | 4 |
Mounting holes diameter | 6.5 mm |
Circle diameter of the mounting holes | 98.99 mm |
Electrical connection | Connector |
Holding brake | Without |
Shaft end | Untapped |
Second shaft | Without second shaft end |
Shaft diameter | 14 mm |
Shaft length | 30 mm |
nominal torque | 6 N.m |
Peak stall torque | 5.78 N.m |
Continuous stall torque | 5.78 N.m |
Holding torque | 6.78 N.m |
Rotor inertia | 3.3 kg.cm2 |
Resolution | 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle |
Accuracy error | +/- 6 arc min |
Maximum starting frequency | 5.3 kHz |
[In] rated current | 2.25 A |
Resistance | 6.5 Ohm (winding) |
Time constant | 10 ms |
Maximum radial force Fr | 110 N (first shaft end) |
Maximum axial force Fa | 175 N (tensile force) |
Service life in hours | 20000 h (bearing) |
Angular acceleration | 200000 rad/s2 |
Net weight | 4.3 kg |
Environment | |
Standards | IEC 60072-1 |
type of cooling | Natural convection |
Ambient air temperature for operation | -25…40 °C |
Ambient air temperature for storage | -25…70 °C |
Operating altitude | <= 1000 m without power derating |
Relative humidity | 15…85 % without condensation |
Vibration resistance | 20 m/s2 maximum |
IP degree of protection | IP41 shaft bushing: conforming to IEC 60034-5 |
Temperature class | F winding conforming to IEC 60034-1 |
Packing Units | |
Unit Type of Package 1 | PCE |
Number of Units in Package 1 | 1 |
Package 1 Height | 20.400 cm |
Package 1 Width | 22.800 cm |
Package 1 Length | 40.600 cm |
Package 1 Weight | 5.150 kg |
Unit Type of Package 2 | P06 |
Number of Units in Package 2 | 12 |
Package 2 Height | 77.000 cm |
Package 2 Width | 80.000 cm |
Package 2 Length | 60.000 cm |
Package 2 Weight | 72.196 kg |
Contractual warranty | |
Warranty | 18 months |
SCHNEIDER伺服電機BRS39BW460ACA產品介紹
Lexium SD3 產品由 SD3 步進電機驅動器和 BRS3 三相步進電機組成。此組合提供專為復雜機器設計的極其緊湊、高性能的驅動系統。參考值由主 PLC 或運動控制器（如 Lexium LMC）定義。如果需要，主運動控制器或 PLC 可以從驅動器獲取編碼器數據。
Lexium SD3 offer consists of an SD3 stepper motor drive and a BRS3 3-phase stepper motor. This combination provides an extremely compact, high-performance drive system designed specifically for complex machines. Reference values are defined by a master PLC or a motion controller such as the Lexium LMC. If required, the master motion controller or the PLC can get the encoder data back from the drive.
