HONEYWELL電機M6284/M6294系列技術參數
Application: | Electric |
Control Signal: | Floating |
Frequency: | 50 Hz; 60 Hz |
Fail Safe Mode: | Non-Spring Return |
Auxiliary Switch Ratings: | AFL - 120 Vac – 7.2A; ALR - 120 Vac – 43.2A; AFL - 240 Vac – 3.6A; ALR - 240 Vac – 21.6A |
Shaft Rotation (upon control signal increase): | Dependent on wiring (normally closed) |
External Auxiliary Switches Available: | Yes |
Mounting: | Foot-mounted |
Power Consumption: | Driving – 15 VA |
Feedback: | Yes |
Shaft Dimensions: | 0.375 in. Square (10 mm Square) |
Motor Shafts: | 2; Dual-ended shaft |
Deadweight Load on Shaft: | Either End – 200 lbs.; Combined on both Shafts – 300 lbs. |
Approximate, Dimensions: | 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep (164 mm high x 140 mm wide x 185 mm deep) |
Ambient Temperature Range: | -40°F to +150°F (-40°C to +60°C) |

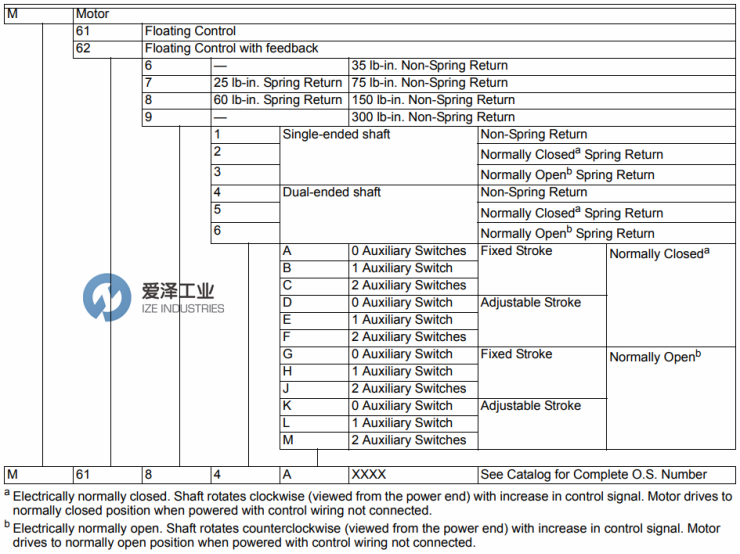

HONEYWELL電機M61/M62系列介紹及選型
61 系列和 62 系列 Modutrol IV 電機是三線彈簧復位和非彈簧復位浮動控制電機。 將這些電機與控制器一起使用，該控制器提供開關式 spdt 或浮動輸出來操作阻尼器或閥門。62 系列電機具有內部電氣隔離反饋電位器，可提供電機軸位置指示，可用于從動 90 系列電機或重新平衡 外部控制電路。
The Series 61 and Series 62 Modutrol IV Motors are three-wire spring return and non-spring return floating control motors. Use these motors with controllers that provide a switched spdt or floating output to operate dampers or valves.The Series 62 motors have an internal electrically isolated feedback potentiometer that provides indication of the motor shaft position and can be used for slaving Series 90 Motors or rebalancing an external control circuit.
HONEYWELL電機M61/M62系列其他常用型號：
HONEYWELL M6284A1055-S
HONEYWELL M6284A1071-S
HONEYWELL M6284A1089-S
HONEYWELL M6284A1097-S
HONEYWELL M6284C1010-S
HONEYWELL M6284D1000-S
HONEYWELL M6284D1026-S
HONEYWELL M6284D4004-S
HONEYWELL M6284F1013-S
HONEYWELL M6284F1062-S
HONEYWELL M6294D1008-S
HONEYWELL motors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL電機M6284C1010-S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.

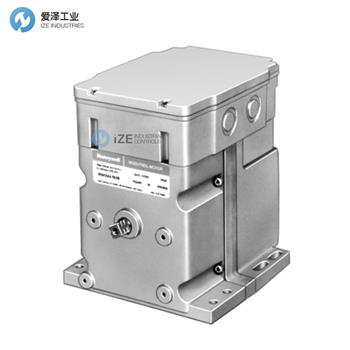

HONEYWELL電機M62系列M6284C1010-S技術參數及選型
