OLIVERVALVES閥G12FF系列技術參數
Specifications | |
Bore | 0.21″ (5.4mm) |
Connection Size | From 1/4″ to 1.” |
CV | 0.46 |
Handle | ‘T’ Bar |
Packing | PTFE/Graphite |
PSI Ratings | From 6,000 PSI to 10,000 PSI |
Seats | Metal to Metal |
Temperature | 240 Deg C / 540 Deg C |
Thread Form | NPT (As Standard) BSPP & BSPT |
OLIVERVALVES閥G12FF系列介紹
G12FF 2 型閥組專為遠程安裝到靜壓變送器而設計。獨立的排氣閥可完全控制儀器的排氣，并具備現場校準功能。每個針閥頭均采用安全可靠的設計，隔離，實現氣密關閉，并配備防旋轉和防磨損的閥尖以及動態自調節主軸密封，確保在各種使用條件下?lián)碛虚L(zhǎng)久的使用壽命。
主要特點：
? 不旋轉尖端 - 自定心且防磨損
? 活塞環 - 根據壓力變化動態調節壓蓋密封
? 防吹出主軸 - 一項重要安全功能
? 安全密封 - 精密加工，確保閥門在使用壽命內無泄漏運行。提供PTFE 或 Grafoil 材質

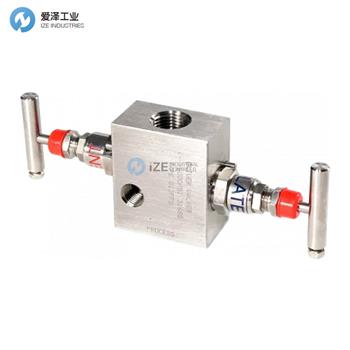

The ‘G12FF’ Type 2 valve manifold is designed for remote mounting to static pressure transmitters. The separate vent valve gives full control of venting of the instrument, plus the ability to calibrate in-situ. Each needle valve head is designed for safe and reliable isolation, giving bubble tight shut off, with non-rotating & anti-galling tip and dynamic self-adjusting spindle seal to give long service life in a variety of service conditions.
Key Features:
? Non rotating tip - self centering & anti-galling
? Piston ring - gives dynamic adjustment of gland seal in response to pressure change
? Anti-blow out spindle - a major safety feature
? Secure seal - precision machined to give leak free operation for the life of the valve. Available in either PTFE or Grafoil

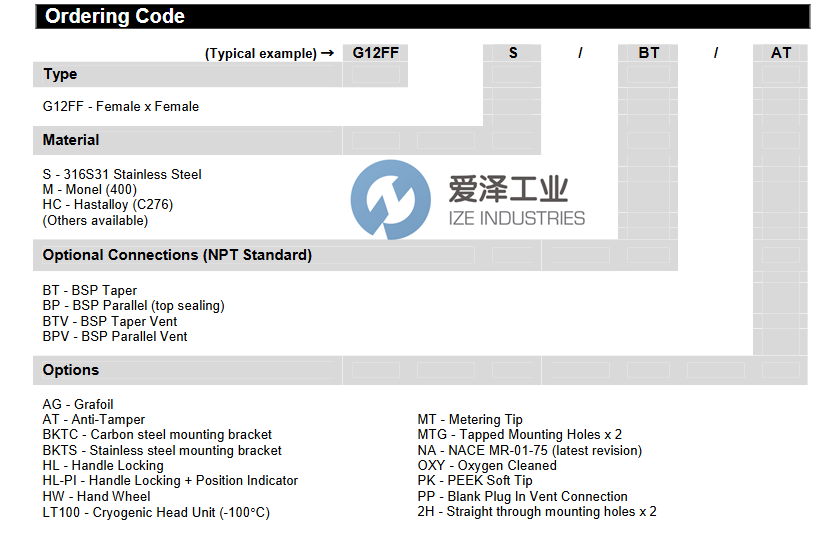

OLIVERVALVES閥G12FF系列選型
OLIVERVALVES閥G12FF系列其他常用型號：
OLIVERVALVES G12FF/S/MTG
OLIVERVALVES G12FF/S/AG
OLIVERVALVES G12FF/S/AT
OLIVERVALVES G12FF/S/BKTC
OLIVERVALVES G12FF/S/HL
OLIVERVALVES G12FF/M/MTG
OLIVERVALVES G12FF/HC/MTG
OLIVERVALVES G12FF/M/MT
OLIVERVALVES G12FF/M/AG
OLIVERVALVES G12FF/M/AT
OLIVERVALVES G12FF/HC/ZH
OLIVERVALVES Gauge Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于OLIVERVALVES閥G12FF/S/MTG的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for OLIVERVALVES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
