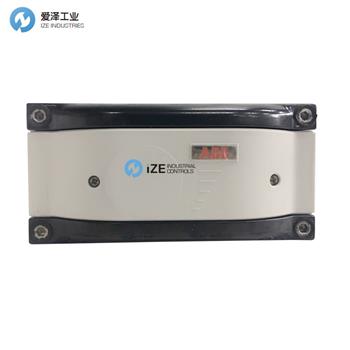

ABB Positioner V18345-1010221001
TZIDC | TZIDC-200 | |
Input/ communication | ||
4…20 mA LCI | X | X |
4…20 mA HART 5/ HART 7 | X | X |
PROFIBUS PA | TZIDC-110 | TZIDC-210 |
FOUNDATION Fieldbus | TZIDC-120 | TZIDC-220 |
Housing | ||
Aluminium | X | X |
Increased corrosion protection | X | – |
Explosion protection | ||
without | X | – |
Intrinsic safety | X | X |
Explosion proof | – | X |
Position sensor (up to 270° rotation angle) | X | X |
Supply pressure | 1.4…6 bar (20…90 psi) | |
Air capacity | until 10 Nm3/h (6 scfm) | |
Air consumption | < 0.03 kg/h/ 0.015 scfm | |
Ambient temperature range | ﹣40…+85 °C (-40…+185 °F) | |
Influence of vibration | < 1 % until 10 g and 80 Hz | |
Intelligent diagnostics | X | X |
Remote version(with HART communication) | X | – |
ABB TZIDC
Electro-Pneumatic Positioner
● HART protocol
● For 4-20 mA two-wire technology
● Low operating cost
● Compact design
● Well-proven technology
● Robust and environmentally ruggedized
● Wide operating temperature range -40℃…85℃(-40...185F)
● Easy to commission, ?°single pushbutton?± operating
● philosophy
● Mechanical position indicator
● ATEX, FM, CSA, GOST and IECEx approvals
● For SIL2 safety loops
Part Number: V18345-1010221001/V18345.10.1.0.2.2.1.00.1

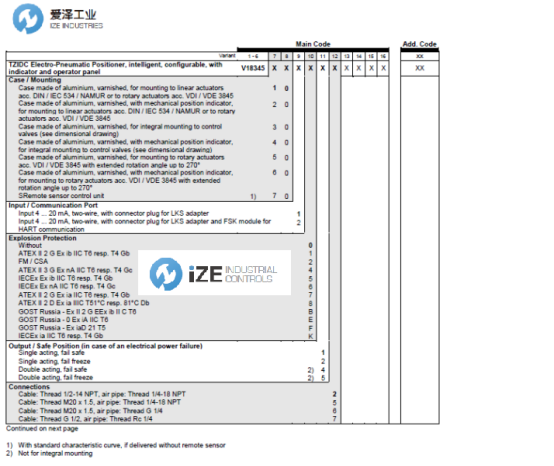

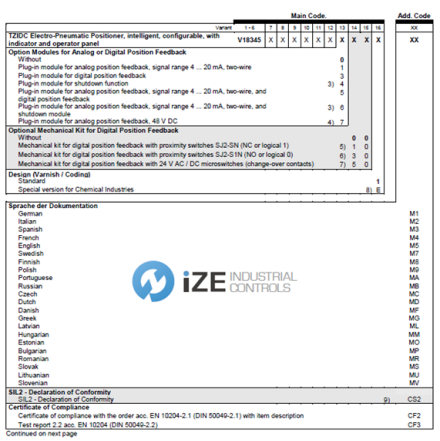

V18345-1010221001/V18345.10.1.0.2.2.1.00.1 Ordering Information
TZIDC Intelligent Positioner : V18345 - Intelligent, configurable with indicator and operator panel
Optional mechanical kit for digital position feedback: 1 - Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting
0 - Always 0
Input / communication port: 1 - Input 4...20 mA, two-wire with connector plug for LKS adapter
Explosion protection: 0 - without
Output / safe position (in case of an electrical power failure): 2 - Single acting, fail freeze
Connections: 2 - Cable: Thread 1/2-14 NPT; Air pipe: Thread 1/4-18 NPT
Option modules for analog or digital position feedback: 1 - Plug-in module analog position feedback (sign. range 4 … 20 mA)
Optional mechanical kit for digital position feedback: 0 - without
0 - Always 0
Design (varnish / coding): 1 – Standard

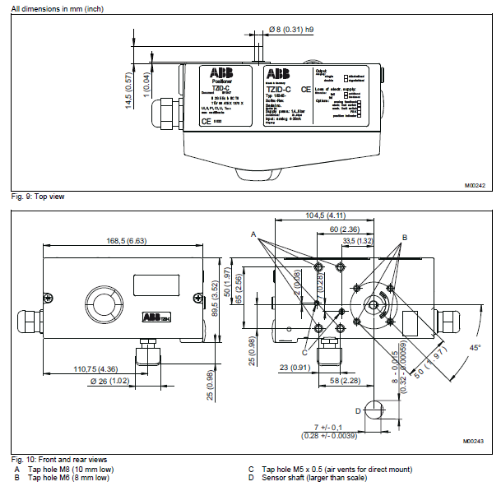

V18345-1010221001/V18345.10.1.0.2.2.1.00.1 Dimension
IZE_industries specializes in sales of ABB Positioner V18345-1010221001, Sweden ABB full range of products, ABB Positioner, ABB motor brush, ABB module, ABB motor, ABB Load cell, ABB pressure sensor, ABB transformers, ABB Low-voltage motors, ABB synchronous motors, ABB motors, ABB generators and more.
ABB Positioner TZIDC V18345-1010121001
ABB Positioner TZIDC V18345-1010221001
ABB Positioner TZIDC V18345-1017121001
ABB Positioner TZIDC V18345-1020121001
ABB Positioner TZIDC V18345-1011121001
ABB Positioner TZIDC V18345-1010551001
ABB Positioner TZIDC V18345-2011423301
ABB Positioner TZIDC V18345-1020221001
ABB Positioner TZIDC V18345-2027551001
ABB Positioner TZIDC V18345-1017121001
ABB Positioner TZIDC V18345-1027120001
ABB Positioner TZIDC V18345-2010460001
ABB Positioner TZIDC V18345-102712000Y
ABB Positioner TZIDC V18345-3027121001
ABB Positioner TZIDC V18345-1010421001
ABB Positioner TZIDC V18345-1014121001
ABB Positioner TZIDC V18345-1010521001
ABB Positioner TZIDC V18345-1014121001
ABB Positioner TZIDC V18345-1010151001
ABB Positioner TZIDC V18345-1010261001
