AMCI模塊1242技術參數
PRODUCT SPECIFICATIONS | |||
AMCI Module | 1241 (single-turn) | 1242 (single-turn) | 1242 (multi-turn) |
PLC platform | 1756 ControlLogix | ||
Number of channels | (1) channel | (2) channel | (1) channel |
Max. full scale count | 8,192 | 737,280 | |
Number of I/O | 1 in D / 0 out D | na | |
Tachometer resolution | 1 RPM | ||
DC supply requirements | 645 mA max. @ 5Vdc | ||
Transducer compatibility | H25 / HT-6 / HT-20 HT-400 / HT-20-(x) R11X-J10/7 | HTT-20 / HTT-400 / HTT-425 | |
Cable requirements | CTL-X | CML-X | |
Required hardware | na | na | na |
Optional hardware | na | na | na |
AMCI模塊1242產品介紹

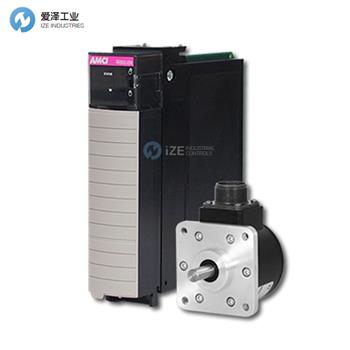

1242是用于Rockwell Automation的ControlLogix平臺的第一個雙解析器接口模塊。該模塊將旋轉變壓器信號轉換為數字位置和轉速表數據，這些數據通過背板報告。還報告狀態信息。1242消除了將解析器數據導入PLC所需的單獨的解析器解碼器盒，輸入卡以及相關的接線。
1242具有兩個旋轉變壓器輸入，并且可以配置為接受兩（2）個單旋轉變壓器或一（1）個雙旋轉變壓器。顧名思義，單旋轉變壓器有一個旋轉變壓器，而雙旋轉變壓器有兩個。單旋轉變壓器通常是單匝設備，但AMCI還制造了一系列多匝單旋轉傳感器，這些齒輪與旋轉變壓器一起嵌入齒輪箱中。雙旋轉變壓器始終是多匝設備。嵌入換能器包裝中的兩個旋轉變壓器的安裝方式使得1242可以從中解碼出高分辨率的多圈位置。
The 1242 is the first dual resolver interface module for Rockwell Automation’s ControlLogix platform. The module converts resolver signals to digital position and tachometer data that is reported over the backplane. Status information is also reported.The 1242 eliminates the separate resolver decoder box, input card,and associated wiring needed to bring resolver data into a PLC.
The 1242 has two resolver inputs, and can be configured to accept two (2) single-resolver transducers or one (1) dual-resolver transducer. As the terms imply, single-resolver transducers have one resolver embedded in the transducer package while dual-resolver transducers have two. Single-resolver transducers are typically single turn devices, but AMCI also makes a line of multi-turn single-resolver transducers that have a gear train embedded in the transducer along with the resolver. Dual-resolver transducers are always multi-turn devices. The two resolvers embedded in the transducer package are geared in such a way that the 1242 can decode a high resolution multi-turn position from them.
AMCI模塊其他常用型號：
AMCI 1241
AMCI 1242
AMCI 3202
AMCI 3204
AMCI 5274A
AMCI 7252
AMCI 7262
AMCI 7264
AMCI 7272
AMCI 8213
AMCI Resolver Interface Module NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AMCI模塊1242的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for AMCI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
