ABB無紙記錄儀RVG200.A6.A6.Y0.Y0.A.0.B.1.A.1.A.5.Y規格描述
RVG200.A6.A6.Y0.Y0.A.0.B.1.A.1.A.5.Y |
A6 - Option Module A : 6 Analog Inputs |
A6 - Option Module B : 6 Analog Inputs |
Y0 - Option Module C : Not Fitted |
Y0 - Option Module D : Not Fitted |
A - Internal Memory Size : 256 MB |
0 - Expansion 1 : None |
B - Communications : Ethernet & RS485 MODBUS |
1 - Usage Certificates : ABB Standard |
A - Configuration : Standard (Company Default) |
1 - Branding : ABB Standard |
A - Archive Media : Standard Grade SD Card |
5 - HMI Language : English |
Y - Expansion 2 : None |
ABB無紙記錄儀RVG200系列介紹及選型

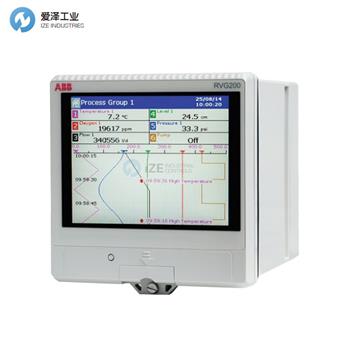

The RVG200 recorder takes the established operating and security benefits of the ScreenMaster range one step further. Features include touchscreen ‘swipe’ operation, front and rear USB ports for connecting peripheral devices (including a barcode scanner and keyboard) and Ethernet and RS485 communications. Up to 24 process signals can be connected to the RVG200’s analog inputs or transferred to it via digital communications.
As with all devices in the ScreenMaster paperless recorder range, the RVG200 features extensive security measures to protect against un-authorized tampering with process data, compliant with FDA 21 CFR Part 11 requirements. Standard security features include the ability to configure and allocate multiple users with individual password and access rights. All recorded data is also securely stored by the RVG200’s 256 Mb of internal flash memory, that can be expanded to 2 GB if required.
RVG200記錄儀將ScreenMaster系列產品已確立的操作和安全優勢進一步提升了一步。功能包括觸摸屏“滑動”操作，用于連接外圍設備（包括條形碼掃描儀和鍵盤）的前后USB端口以及以太網和RS485通信。最多可以將24個過程信號連接到RVG200的模擬輸入或通過數字通信傳輸?shù)剿?/p>
與ScreenMaster無紙記錄儀系列中的所有設備一樣，RVG200具有廣泛的安全措施，可防止未經授權篡改過程數據，符合FDA 21 CFR Part 11的要求。標準的安全功能包括使用單獨的密碼和訪問權限配置和分配多個用戶的能力。RVG200的256 Mb內部閃存也安全地存儲了所有記錄的數據，如果需要，可以將其擴展到2 GB。
ABB無紙記錄儀RVG200系列其他型號：
ABB RVG200.A6.A6.Y0.Y0.A.0.B.1.A.1.A.5.Y
ABB RVG200A6Y0Y0Y0A
ABB RVG200.A6.A6.Y0.Y0.A.0.A.1.A.1.A.5.Y
ABB Paperless recorderNEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ABB無紙記錄儀RVG200.A6.A6.Y0.Y0.A.0.B.1.A.1.A.5.Y的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ABB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
