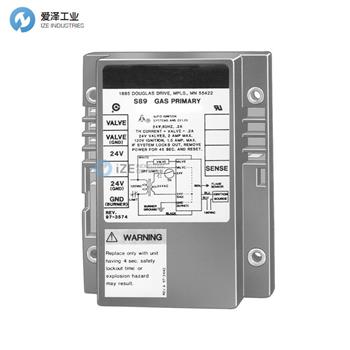

RESIDEO控制器S89F1098技術參數
Product Specifications | |
Dimensions (in.) | 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long |
Dimensions (mm) | 133 mm high x 103 mm wide x 49 mm deep |
Item Type | Product |
Electrical Ratings | 24 Vac |
Frequency | 60 Hz |
Approvals, Canadian Standards Association | Design Certified |
Flame Failure Response Time (sec) | 2.0 sec. @ 2.5 microamp |
PrePurge | 30 sec. minimum |
Ambient Temperature Range (C) | -40 C to +79 C |
Ambient Temperature Range (F) | -40 F to +175 F |
Ignition System Type | Direct Spark Ignition |
Ignition Sequence | Single trial for main burner ignition (then shut down and lockout) |
Typical Gas Control | VR8205, VR8305 |
Type of Gas | Natural or LP |
Flame Sense | Two Rod |
Ignition Source | External (120 VAC powered) High Voltage Spark Generator |
Ignition Trials To Lockout | 1 |
Lockout Timing | 4 sec. |
Ignition Trial Time (sec) | 4 sec. |
Maximum Valve Load @ 24 Vac (Amps) | 2A |
Flame Failure Re-ignition Time (sec) | 0.8 sec. maximum |
RESIDEO控制器S89F1098產品介紹
概述
提供用于燃?xì)鉅t、鍋爐、轉換燃燒器及其他供暖設備的直接火花點火系統的電子控制，配有外部火花變壓器。
特點
控制直接點火系統中的點火順序和燃?xì)饪刂撇僮鳌?/p>
控制獨立的120V交流火花發生器，為主要燃燒器點火提供高壓電勢。
如果主燃燒器未點燃，嘗試一次后會鎖定。
由恒溫器重置，解鎖后重新啟動。點火和火焰檢測使用不同的電極。
使用任何設計用于直接火花應用、額定電流不超過2.0A的24V交流燃?xì)饪刂破鳌?/p>
Overview
Provide electronic control of direct spark ignition systems, with external spark transformers, used on gas-fired furnaces, boilers, conversion burners and other heating appliances.
Features
Controls ignition sequence and gas control operation in direct spark ignition systems.
Control separate 120 Vac spark generator that provides high voltage potential for main burner ignition.
Lockout after one trial for ignition if main burner fails to ignite.
Reset from thermostat after lockout. Use separate electrodes for spark ignition and flame sensing.
Use any 24 Vac combination gas control designed for direct spark applications and rated at 2.0A or less.
RESIDEO控制器其他常用型號：
RESIDEO S89F1098
RESIDEO S89E1058/B
RESIDEO S89E1058/U
RESIDEO S89F1098/B
RESIDEO S89F1098/U
RESIDEO S89F1106/U
