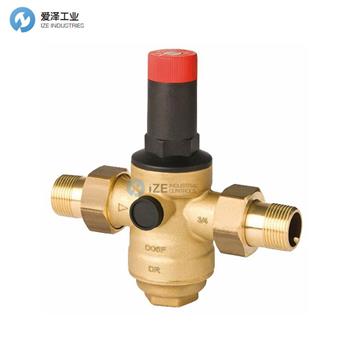

RESIDEO減壓閥D06FH-2B技術參數
Technical Properties | |
Medium type | drinking water |
DN size | 50 mm |
Connection Inlet/Outlet | conn. set, ext. thread |
Outlet pressure | 1.5 ... 12 bar |
Max. operating temp. | 60C (70C with max. press. 10bar) |
Flow capacity Kvs | 12 |
Body material | brass, dezincification resistant |
Spring bonnet material | synthetic material |
Filter mesh | 0.16 mm |
Filter bowl | brass |
Balanced seat design | Yes |
Additional Descriptions | Inlet pressure balancing - no influence on outlet pressure by fluctuating inlet pressure |
Port diameter | 2 inch |
Maximum inlet pressure | 25 bar |
Preset Outlet Pressure | 5 bar |
Minimum pressure drop | 1 bar |
RESIDEO減壓閥D06FH-2B介紹
產品描述
根據 EN 806-2 標準，此類減壓閥用于保護家庭水系統，防止供水壓力過高。它們也可用于工業或商業應用范圍內。在安裝減壓閥后，可以避免壓力損壞，并降低水耗。即使入口壓力波動較大，設定壓力也能保持恒定。減壓操作及其維持在恒定水平，有助于減少系統中的流動噪音。
Product Description
According EN 806-2 pressure reducing valves of this type protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
RESIDEO減壓閥D06F系列其他常用型號：
RESIDEO D06FH-1/2B
RESIDEO D06FH-3/4B
RESIDEO D06FH-1B
RESIDEO D06FH-11/4B
RESIDEO D06FH-11/2B
RESIDEO D06FH-2B
RESIDEO pressure reducing valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RESIDEO減壓閥D06FH-2B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RESIDEO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
