MIYACHI便攜式焊縫檢測儀MM-315B技術參數
Model | MM 315B | ||
Current | Measuring range | 1.00- 9.99 KA (LO range) / 5.0 - 49.9 KA (Hi range) | |
Measurement mode | Arithmetic average RMS of measuring range | ||
Accuracy | 9.99 kA range | 49.9 kA range | |
Single phase AC power supply: | Single phase AC power supply: | ||
DC inverter power supply: | DC inverter power supply: | ||
Start cycle of measurement | 1 - 99 cycle | ||
Finish of measurement | AC | DC | |
2% or below of full scale | 75% or below of previous cycle | ||
Display digits | 3 digits | ||
Time | Measuring range | AC | DC |
1 -99 cycle | 1 - 40 cycle per 0.01 - 0.80 sec. | ||
Measurement mode | AlI welding cycle or time | ||
Accuracy | +/-0 cycle per +/-0.01 sec. | ||
Display digits | 2 digits | ||
Conduction angle | Measuring range | 30 - 80 degree | |
Measurement mode | Maximum conduction angle of measuring range | ||
Accuracy | +/-9 degree | ||
Display digits | 3 digits | ||
Power source | Nickel hydrate battery 1.2 V X 4pcs (Time for continuous run: 10hrs) | ||

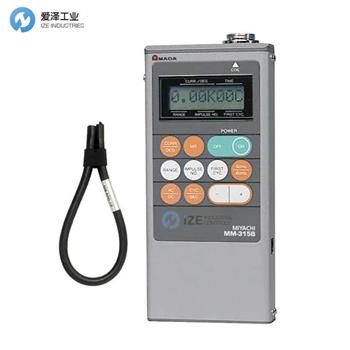

MIYACHI便攜式焊縫檢測儀MM-315B產品介紹
MM-315B 旨在通過易于使用的手持設備檢查焊接電流、焊接時間和導通角，適用于汽車、電子、電池、醫療、IT 和多媒體以及航空航天等各個行業。
- 緊湊、經濟、多功能的焊縫檢測儀
- 測量焊接電流、焊接時間、導通角
- 自動功率0FF功能節省能源
- 大液晶顯示屏，數據查看簡單方便
- 記憶功能允許保存和調用數據
- 包括一個電池充電器
- 蓋板防塵防油
The MM-315B is designed to check weld current, welding time and conduction angle with an easy to use handheld device in various industries such as Automotive, Electronics，Batteries， Medical, IT&Multimedia and Aerospace.
- Compact, economic and multi-functional weld checker
- Measures weld current, welding time, conduction angle
- Automatic power 0FF feature saves energy
- Large LCD display allows data to be easily and conveniently viewed
- Memory function allows to save and recall data
- Includes a battery charger
- Cover panel is dust- and oil-proofa
