VAISALA溫濕度探頭HPP272技術規格
Measurement performance | |
Hydrogen peroxide | |
Sensor | PEROXCAP |
Measurement range | 0 … 2000 ppm |
Measurement temperature range | +5 … +50 °C (+41 … +122 °F) |
Repeatability at +25 °C (+77 °F) up to 500 ppm H2O2 | ±10 ppm |
Accuracy at +10 … +25 °C (+50 … +77 °F) , 10 … 2000 ppm H2O2 ) | ±10 ppm or 5 % of reading (whichever is greater) |
Factory calibration uncertainty at +25 °C (+77 °F), 500 ppm H2O2 ) | ±10 ppm |
Response time (T63) | 70 s |
Relative saturation | |
Measurement range | 0 … 100 %RS |
Measurement temperature range | +5 … +50 °C (+41 … +122 °F) |
Repeatability at +25 °C (+77 °F), 500 ppm H2O2 | ±0.5 %RS |
Accuracy at +25 °C (+77 °F) | ±4 %RS |
Factory calibration uncertainty at +25 °C (+77 °F), 500 ppm H2O2 2) | ±2 %RS |
Relative humidity | |
Measurement range | 0 … 100 %RH |
Measurement temperature range | +5 … +70 °C (+41 … +158 °F) |
Accuracy: | |
at +25 °C (77 °F), 0 ppm H2O2 , 0 … 90 %RH | ±1 %RH |
over full temperature measurement and H2O2 range | ±2 %RH |
Response time (T63) | 20 s |
Factory calibration uncertainty at +25 °C (77 °F), 0 ppm H2O2 , 0 … 95 %RH) | ±1 %RH |
Temperature | |
Sensor | Pt1000 RTD Class F0.1 |
Accuracy over temperature range | ±0.2 °C (±0.36 °F) |
VAISALA溫濕度探頭HPP270系列介紹
VAISALA PEROXCAP過氧化氫、濕度和溫度探頭 HPP271 和 HPP272 專為要求可重復、穩定和準確測量重要的過氧化氫生物凈化而設計。
HPP270 系列探頭適用于各種應用，例如隔離器、材料轉移艙和室內生物凈化。
? 用于 H2O2 蒸汽濃度測量的基本探頭選項 HPP271
? 高級探頭選項 HPP272：緊湊型三合一探頭，可實時測量 H2O2 蒸汽濃度、濕度和溫度
? 采用專有 PEROXCAPa 技術，具有長期穩定性和可重復性
? 耐腐蝕不銹鋼外殼 (IP65)
? 可追溯的校準證書
? 帶有通過 RS-485 或 2 個模擬輸出的數字 Modbus RTU 的獨立探頭
? 與維薩拉 Insight PC 軟件和 Indigo 變送器兼容

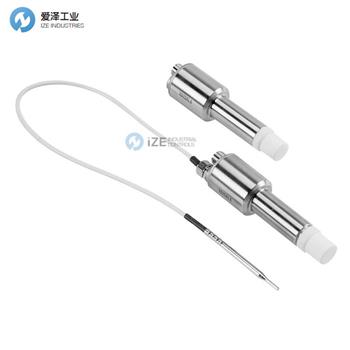

The Vaisala PEROXCAP Hydrogen Peroxide, Humidity, and Temperature Probes HPP271 and HPP272 are designed for demanding hydrogen peroxide biodecontamination where repeatable, stable, and accurate measurement is essential.
The HPP270 series probes are suitable for a variety of applications such as isolator,material transfer hatch, and room bio-decontamination.
? Basic probe option HPP271 for H2O2 vapor concentration measurement
? Advanced probe option HPP272:compact 3-in-1 probe with realtime measurement of H2O2 vapor concentration, humidity, and temperature
? Superior long-term stability and repeatability with proprietary PEROXCAPa technology
? Corrosion-resistant stainless steel housing (IP65)
? Traceable calibration certificate
? Standalone probe with digital Modbus RTU over RS-485 or 2 analog outputs
? Compatible with Vaisala Insight PC software and Indigo transmitters
VAISALA溫濕度探頭HPP270系列其他常用型號：
VAISALA HPP271
VAISALA HPP272
VAISALA Probes NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VAISALA溫濕度探頭HPP272的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VAISALA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
VAISALA溫濕度探頭HPP272技術參數
