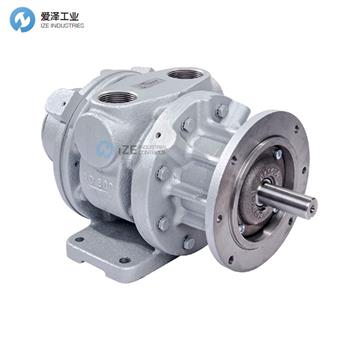

GAST氣動馬達16AM-FRV-13技術參數
Specifications | |
Key Type: | M30-KEYSQ 1.0 |
Max Air Consumption: | 275 cfm ( 467.23 m3h ) |
Max Power: | 9 hp ( 6.71 kW ) |
Max Pressure: | 101 psi ( 6.96 bar ) |
Max Sound Level: | 113 dB(A) |
Max Speed: | 2000 rpm |
Max Torque: | 372 in-lb ( 42.04 N m ) |
Mount: | FOOT |
Output Shaft Type: | Keyed |
Port Size and Type: | 1-1/4" NPT |
Regulatory Approval: | CE, ATEX |
Rotation: | Reversible |
Shaft Size: | 0.88 in ( ) |
Stainless Steel: | NO |
Starting Torque @ 80psi: | 268 in-lb ( 30.28 N m ) |
Torque Max Speed: | 290 in-lb ( 32.77 N m ) |
Vanes: | 6 |
Weight: | 80 lbs ( 36.29 kg ) |
GAST氣動馬達16AM系列產品介紹
16AM 系列提供可變的運行速度和功率輸出，可以進行調整以滿足您的應用的精確需求。它們的空氣節流和壓力控制不僅比電動馬達控制更具成本效益，而且還可以長時間停轉或過載而不會損壞馬達。除了作為非電氣設備和冷運行之外，Gast 氣動馬達還非常適合在危險和極端環境溫度的場所使用。
The 16AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.
GAST氣動馬達16AM系列其他常用型號：
GAST 16 AM-FRV-2
GAST 16AM-FRV-32
GAST 16AM-FRV-13
GAST 16AM-FRV-33
GAST 16AM-FRV-13B
GAST AIR MOTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GAST氣動馬達16AM-FRV-13的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GAST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
