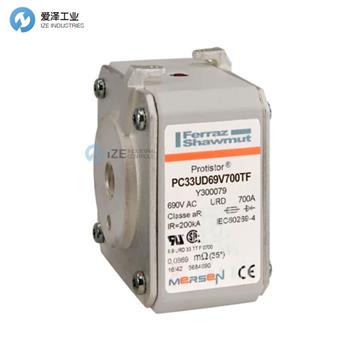

MERSEN熔斷器PC33UD69V700TF技術參數
Technical Specifications | |
Item number | Y300079 |
Catalogue No | PC33UD69V700TF |
Description | Square Body High-Speed Fuse Protistor? Size 33 aR 690VAC IEC 700VAC UL 700A With Striker Flush ends metric threads |
Rated voltage AC UL | 700 V |
Rated voltage AC IEC | 690 V |
Ampere Rating | 700 A |
ROHS Compliant | Yes |
AC or DC | AC |
Speed/Characteristic | aR |
Fuse Size | 33 |
Mounting | Bolted |
Clearing I2t At Rated Voltage | 330 kA2s |
Melting I2t | 57 kA2s |
AC Max I.R./Breaking Capacity: I1 | 200 kA |
Design Details | Standard Terminal |
Indication System | Yes |
Indication System Type | Striker |
Connection/Terminal Material | Silver-Plated Brass |
Connection/Terminal Type | Flush ends |
Product Width | 73 mm |
Product Length | 50.6 mm |
Product Height | 78.5 mm |
Sell Pack Quantity | 3 EA |
Sell Pack Weight | 2.4168 kg |
Sell Pack Width | 85 mm |
Sell Pack Length | 245 mm |
Sell Pack Height | 95 mm |
Product group | Semiconductor Protection Fuses |
Product Weight | 0.8056 kg |
Power Dissipation at Rated Current Value | 115 W |
Body/Insulating Material | Ceramic |
MERSEN熔斷器PC33UD69V700TF產品介紹
方體高速度保險絲 Protistor? 尺寸 33 aR 690VAC IEC 700VAC UL 700A，帶引 striker，平端，公制螺紋
690/700V Protistor? 保險絲連接器為設備設計提供了最大靈活性，并為當今的電力轉換設備提供了極佳的保護。這些超快動作的 aR 方體保險絲連接器有多種不同的外形尺寸，每種尺寸都配備多種全球認可的安裝樣式。Protistor? 經過專門設計，提供最先進的半導體保護，適用于二極管、晶閘管和IGBT器件。保險絲采用模切元件嵌入固化砂中組裝，有助于控制電弧特性，從而實現較低的 I2t 和高斷路能力。所有接觸面都鍍銀，所有硬件均為非磁性材料。每個保險絲連接器均可配備低電壓動作指示器，可操作現場安裝的微動開關。
Square Body High-Speed Fuse Protistor? Size 33 aR 690VAC IEC 700VAC UL 700A With Striker Flush ends metric threads
The 690/700V Protistor? fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor? have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I2t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
