GARO斷路器MCB GS C332描述
Poles | 3 |
Rated voltage [V AC] | 415 |
Frequency [Hz] | 50/60 |
Degree of protection [IP] | 20 |
Wire flexible [mm2] | 1-25 |
Colour | Grey |
Tightening torque [Nm] | 3,5 |
Temperature range [C] | -25...+55 |
Storage temperature [C] | -35...+55 |
Modules [pcs] | 3 |
Standard | EN 60898-1 |
Package size [pcs] | 4 |
Width [mm] | 54 |
Height [mm] | 90 |
Depth [mm] | 75 |
Materials | Plastic |
Rated short-circuit cap. [kA] | 10 |
Connection type | Screw |
Claim prefuse [A] | 125 |
Tripping characteristics | C |
GARO斷路器MCB 10ka系列介紹
MCB 10kA 3極 C特性
微型斷路器，額定電流10kA，適用于工業和住宅應用。它能夠保護系統免受高達10kA的短路電流。配備安裝支架，即使在相線母線已安裝的情況下，也可方便地拆卸或安裝微型斷路器，并且與所有GARO微型斷路器母線兼容。MCB GS C特性，32A 10kA 3極。

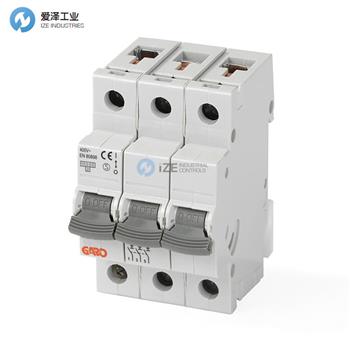

MCB 10kA 3-pole C-characteristics
Miniature circuit breaker 10kA ideal for industrial and residential applications. It is capable of protecting the system against short-circuit currents up to 10kA. It is equipped with a mounting bracket that allows you to remove or install a miniature circuit-breaker even when the phase busbar is installed and is compatible with all GARO busbars for miniature circuit-breakers. MCB GS C-Characteristic 32A 10kA 3-pole
GARO斷路器其他常見型號
GARO MCB GS C3005
GARO MCB GS C301
GARO MCB GS C302
GARO MCB GS C304
GARO MCB GS C306
GARO MCB GS C310
GARO MCB GS C313
GARO MCB GS C316
GARO MCB GS C320
GARO MCB GS C325
GARO MCB GS C332
GARO MCB GS C340
GARO MCB GS C350
GARO MCB GS C363
GARO breaker NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GARO斷路器MCB GS C332的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for GARO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
GARO斷路器MCB GS C332介紹
