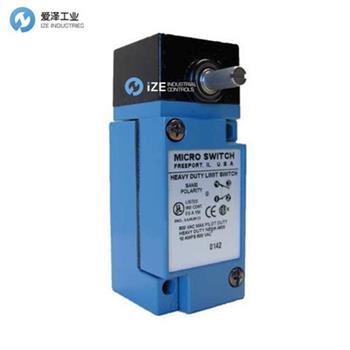

MCIRO SWITCH限位開關LSA1J技術規格
Availability | Global |
Pretravel (PT) | 15° max. |
Differential Travel (DT) | 5° max. |
Actuator | Side Rotary |
Circuitry | 1NC 1NO SPDT Snap Action, Double Break |
Housing Material | Zinc Die-Cast |
Sealing | NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 |
Lever Type | Lever Not Included - Reference Lever Required Accessory |
UL File # | E37138 |
Comment | Gold Cross Point Contacts |
UNSPSC Code | 39122213 |
Sealed | Industrial |
Operating Force (OF) | 0,45 N m [4 in lb] max. |
Overtravel (OT) | 60° min. |
Product Type | MICRO SWITCH Heavy-Duty Limit Switches |
Termination Type | 0.5 in - 14NPT Conduit |
Supply Voltage | 250 Vac and 60 Vdc max. |
Ampere Rating | 0.05 A max. |
Housing Type | HDLS Plug-in |
Series Name | HDLS |
Operating Temperature | -12 °C to 121 °C [10 °F to 250 °F] |
Agency Approvals and Standards | UL, CE, CSA, CCC. EN60947-1, EN60947-5-1 |
UNSPSC Commodity | 39122213 Limit Switches |
Contact Material | Gold |
MCIRO SWITCH限位開關LSA1J概觀
MICRO SWITCH HDLS系列重載限位開關，插入式，側旋轉，1NC 1NO SPDT快動，0.5in - 14NPT導管。
傳感與控制提供世界上最先進的MICRO SWITCH重載限位開關系列。這些開關包括用于安全頭到端保持的凸臺和插座頭設計，獨特的全金屬傳動系統，即使在高溫下也能保持一致的操作特性（持續時間更長，無需頻繁調整，而不是帶有塑料部件的傳動系統）自升式壓板端子，節省接線時間，易于識別接地端子（內部），符合OSHA和其他監管機構標準，一體式平墊圈（密封件比繞曲線和拐角的墊圈更好，不接觸端子銷以減少流體遷移的可能性，）單極和雙極開關的正面安裝和互換性，插入式和非插入式，以及其他開關品牌，
MCIRO SWITCH限位開關LSA1J產品功能
各種操作頭
現場可調節的操作模式，減少庫存
方便的現場調整說明
完整的電路選擇和電氣額定選項
插入式和非插入式版本具有相同的操作特性，并且尺寸可互換
歧管（后線）版本
防爆版本
低溫版本至-40°C（-40°F）
俘獲頭部和身體螺釘
設計用于承受地震沖擊
不銹鋼（NEMA 4X）版本
預引線電纜或預接線連接器類型
環氧樹脂填充沖洗（NEMA 6P）類型
MCIRO SWITCH限位開關LSA1J應用
機械工具
物料搬運
打包
壓力機
紙漿和造紙
焊接
PLC接口
完全氟碳（FC）密封版本
MICRO SWITCH HDLS Series Heavy-Duty Limit Switch, Plug-in, Side Rotary, 1NC 1NO SPDT Snap Action, 0.5 in - 14NPT conduit.
Sensing and Control offers the world's most advanced line of MICRO SWITCH heavy-duty limit switches. These switches include boss-and-socket head design for secure head-to-body retention, unique all-metal drive train for consistent operating characteristics even at high temperature (lasts longer without the need for frequent adjustment than drive trains with plastic parts,) self-lifting pressure plate terminals save wiring time, easily identified grounding terminal (inside) for compliance with OSHA and other regulatory agency standards, one piece flat gasket (seals better than gaskets that go around curves and corners, does not contact terminal pins to reduce chances of fluid migration,) front mounting and interchangeability of single- and double-pole switches, plug-in and non plug-in with one another and with other switch brands, tracking interchangeability of actuator levers for single- and double-pole switches, plug-in and non plug-in, twin shaft seals for an extra measure of protection, inner FC O-ring seal, outer Buna-N seal (all FC available,) FC shaft and diaphragm seals on side rotary switches, rugged corrosion-resistant zinc head and body are phosphate treated and epoxy finished, exclusive teller tab assures proper torque (when it cannot be moved the lever is tight enough to prevent slippage) and domestic and international conduit taps.
Product Features
Wide variety of operating heads
Field adjustable operating modes, for reduced inventory
Convenience of on-the-spot adjustment instructions
Complete choice of circuitry and electrical rating options
Plug-in and non plug-in versions have identical operating characteristics and are dimensionally interchangeable
Manifold (rear-wire) version
Explosion-proof versions
Low temperature versions to -40°C (-40°F)
Captive head and body screws
Designed to withstand seismic shock
Stainless steel (NEMA 4X) versions
Pre-leaded cable or pre-wired connector types
Epoxy filled wash down (NEMA 6P) types
Completely fluorocarbon (FC) sealed versions
Applications
Machine Tools
Material Handling
Packaging
Presses
Pulp and Paper
Welding
PLC Interface
