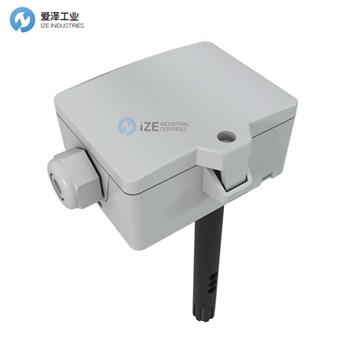

THERMOKON傳感器LK+CO2V技術參數
Technical data | |
Application/type | Duct sensor |
Purpose | Measure values |
Measured values | CO2 |
Interface | Active, 0..10 V |
Sensor | NDIR (non-dispersive, infrared) |
Output voltage | 0..10 V, min. load 10 kΩ |
Operating range temperature (°C) | 0..+50 |
Operating ranges temperature (°C) | 0..+50 |
Operating range humidity | max. 85% rH short term condensation |
Measuring range CO2 | 0..2000 ppm |
Accuracy CO2 | ±50 ppm +3% of measured value (typ. at 21 °C, 50% rH, 1015 hPa), self-calibration Dual Channel |
Power supply | 15..35 V = SELV, 19..29 V ~ SELV |
Power consumption | max. 2,5 W (24 V =), 4,3 VA (24 V ~) |
Material in touch with media | Pipe, ?=19,5 mm, black, length 150 mm |
Installation length (mm) | 150 |
Enclosure | USE-M, impact- and shock-resistant enclosure with quick-release cover, PC |
Colour | pure white |
Protection (IP) | IP65, according to EN 60529 |
Connection | removable cable entry flextherm M20 for wire ?=4,5..9 mm, removable plug-in terminal, max. 2,5 mm2 |
Delivery content | incl. mounting flange, incl. mounting set (screws and accessories) |
Packaging length (mm) | 87 |
Packaging width (mm) | 87 |
Packaging height (mm) | 200 |
Packaging | case packaging |
Device length (mm) | 85 |
Device width (mm) | 84 |
Device height (mm) | 195 |
Notes | air speed 0,3..12 m/s |
THERMOKON傳感器LK+系列介紹
免維護的多功能管道空氣質量傳感器可測量 CO2、混合氣體 (VOC)、溫度和濕度（相對、絕對、焓、露點）?？蛇x功能（例如 2 點控制器或 2 級 2 點控制器的繼電器輸出、LCD 和交通燈功能）可實現廣泛的應用。鉸鏈蓋和免工具接線以及可拆卸電纜入口確保快速輕松安裝。
The maintenance-free and multi-functional duct air quality sensor measures CO2, mixed gas (VOC), temperature and humidity (relative, absolute, enthalpy, dew point). Optional features, such as a relay output for a 2-point controller or a 2-stage 2-point controller, LCD and traffic light function allow for a wide range of applications. A hinged cover and tool-free wiring as well as removable cable entries ensure a quick and easy installation.
THERMOKON傳感器LK+系列其他常用型號：
THERMOKON LK+ CO2+VOC VV
THERMOKON LK+ CO2+VOC AA
THERMOKON LK+ CO2+VOC VV relay
THERMOKON LK+ CO2+VOC LCD VV
THERMOKON LK+ CO2+VOC LCD AA
THERMOKON LK+ CO2+VOC LCD VV relay
THERMOKON LK+ CO2+VOC temp 3xV
THERMOKON LK+ CO2+VOC LCD temp 3xV
THERMOKON LK+ CO2+VOC temp_rH 4xV
THERMOKON LK+ CO2+VOC temp_rH 4xVS PT1000
THERMOKON LK+ CO2+VOC LCD temp_rH 4xV
THERMOKON LK+ CO2+VOC 100 temp_rH 4xV
THERMOKON LK+ CO2 V
THERMOKON LK+ CO2 VS NTC10k Carel
THERMOKON LK+ CO2 VS LM235Z
THERMOKON LK+ CO2 temp VV
THERMOKON LK+ CO2 temp VVS PT1000
THERMOKON LK+ CO2 temp AA
THERMOKON SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于THERMOKON傳感器LK+CO2V的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for THERMOKON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
