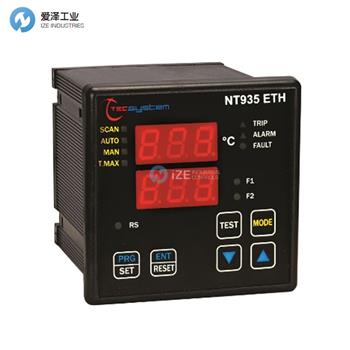

TECSYSTEM溫度控制器NT935系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:NT935ETH
TECSYSTEM溫控器NT935ETH
預估貨期:
關  鍵  詞:TECSYSTEM溫控器NT935ETHNT935WSNT935ADNT539
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

TECSYSTEM溫控器NT935ETH技術參數

Technical Specifications

Power Supply

Rated values 85-260 Vac-dc
Vdc with reversible polarities

Inputs

4 inputs RTD PT100 3 wires
Removable rear terminals
Input channels protected against electromagnetic interference
Sensor length cable compensation up to 500 m (1 mm2)

Outputs

2 alarm relays (ALARM-TRIP)
2 alarm relays for fan control (FAN1 and FAN2)
1 alarm relay for sensor fault or working anomaly (FAULT)
Output contacts capacity: 10A-250 Vac-res COS ? =1
Ethernet output 10Base T/ 100Base-TX Modbus TCP slave

Tests and performances

Assembling in accordance with CE   rules
Protection against electromagnetic noises CEI-EN61000-4-4
Dielectric strength: 1500 Vac for 1 minute from relays to sensors, relays to   power supply, power supply to sensors
Accuracy: ± 1% full scale value ± 1 digit
Ambient operating temperature: from -20°C to +60°C
Humidity: 90% non-condensing
Self-extinguishing housing NORYL 94_V0
Polycarbonate frontal film IP65
Burden: 7,5VA
Digital linearity of sensor signal
Self-diagnostic circuit
Option: tropicalization

Displaying and data management

2 displays 13 mm with 3 digits for   displaying temperatures, messages and channels
3 leds to display the state of the alarms of the selected channel
2 leds to display the state of FAN1 and FAN2
Temperature monitoring from 0°C to 240°C
2 alarm thresholds for channels 1-2-3
2 alarm thresholds for channel 4
2 ON-OFF thresholds for FAN1 and FAN2
Sensors diagnostic (Fcc-Foc-Fcd)
Data storage diagnostic (Ech)
Access to programming through front keyboard
Automatic exit from relay programming, display and test after 1 minute’s   inactivity
Incorrect programming warning
Possibility of setting automatic channels scanning, hottest channel,manual   scanning
Maximum reached temperatures and alarm storage
Frontal alarm reset push button
Voting function
Intellifan function

Dimensions

100 x 100 mm DIN IEC 61554 (ex.   DIN 43700) depth 130 mm (terminals included)

Panel cut-out 92 x 92 mm


愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

TECSYSTEM溫控器NT935ETH介紹

NT935 ETH 是一款基于微控制器的創新型電子設備,專為干式和樹脂澆注變壓器而設計,并集成了 ETHernet 端口。


它配備了監控和控制變壓器溫度所需的所有必要功能,并且與現有的 NT935 產品線一樣,在 2016 年版中,硬件和軟件的功能更加強大。


通過 ModBus TCP/IP 協議與網絡進行通信,用戶可以輕松地在辦公桌上顯示和編程所有設備功能!


NT935 ETH 保留了傳統的 4 個 Pt100 輸入(繞組 + 環境)和 5 個繼電器 ALARM、TRIP、FAN1、FAN2 和 FAULT,同時增加了新功能和全新的前面板顯示屏,得益于 2016 年新版本的多功能性,還提供其他傳感器輸入。



The NT935 ETH is an innovative microcontroller-based electronic device designed for dry-type and cast-resin transformers and features an integrated Ethernet port.



It is equipped with all the necessary functions for monitoring and controlling transformer temperature. Like the existing NT935 product line, the 2016 version features even more powerful hardware and software.



Communication with the network via the ModBus TCP/IP protocol allows users to easily display and program all device functions from their desk!



The NT935 ETH retains the traditional four Pt100 inputs (winding + ambient) and five relays (ALARM, TRIP, FAN1, FAN2, and FAULT), while adding new features and a brand new front-panel display. Thanks to the 2016 version's versatility, additional sensor inputs are also available.
