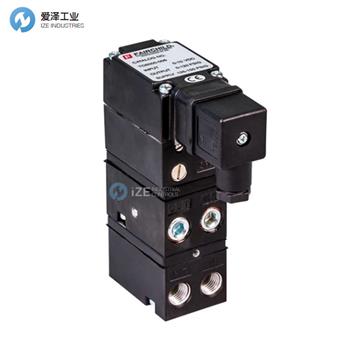

FAIRCHILD轉換器TD6000-424U技術參數
Manufacturer: | Fairchild Products |
Accuracy: | ±0.75% Full Scale |
Action Type: | Field Reversible |
Air Connection: | 1/4 in. BSPT Threaded x 1/4 in. BSPT Threaded |
Air Flow Rate: | 11 SCFM @ 1000 kPa Supply |
Body Material: | Aluminum |
Electrical Connection: | DIN43650 Connection |
Flow Capacity: | 11 SCFM (18.7 M3/HR) @ 150 psig |
Input Signal: | 4 to 20 mA |
Input Type: | Current |
Mounting Method: | DIN Rail - Mount Kit 16893 (Included), Flat Surface - (2) #10-32 TPI Screw, Panel/Wall - 16799-1 Mount Kit (Included) |
Output Type: | Pressure |
Product Type: | Electro-Pneumatic Transducers |
Temperature Range: | -20°F to 150°F |
Output: | 0 to 200 kPa |
Product Category: | Transducers |
FAIRCHILD轉換器T6000系列介紹
Fairchild T6000 型號傳感器將直流電流或電壓輸入信號轉化為線性比例的氣動輸出。T6000 專為精密應用設計，提供最大的多功能性。其模塊化結構允許在防爆、機架、墻壁、管道、面板、DIN 導軌或歧管配置中使用。維修或校準快捷簡便，其緊湊的尺寸可減少重量和空間要求。
The Fairchild Model T6000 Transducer converts a DC current or voltage input signal to a linearly proportional pneumatic output. The T6000 is designed for precision applications, providing maximum versatility. Its modular construction allows use in explosion-proof, rack, wall, pipe, panel, DIN rail or manifold configurations. Servicing or calibration is quick and easy, and its compact size reduces weight and space requirements.
FAIRCHILD轉換器TEXI7800系列其他常用型號：
FAIRCHILD TD6000-004
FAIRCHILD TT6000-406
FAIRCHILD TT6000-404
FAIRCHILD TT6000-006
FAIRCHILD TD6000-401
FAIRCHILD TD6000-006
FAIRCHILD TD6000-406
FAIRCHILD TA6000-401
FAIRCHILD TT6000-405
FAIRCHILD TT6000-401
FAIRCHILD TD6000-403
FAIRCHILD TT6000-403
FAIRCHILD TD6000-405
FAIRCHILD TD6000-404
FAIRCHILD TA6000-005U
FAIRCHILD TAFI6000-406W
FAIRCHILD TD6000-424U
FAIRCHILD Converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FAIRCHILD轉換器TD6000-424U的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FAIRCHILD products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
