HYDROTECHNIK傳感器3410-1400-A233Z1S技術參數
General characteristics | |
Sensor principle | Electromagnetic induction |
Measuring range | 1 ... 5000 Hz |
Measuring accuracy | ±0.1% of full scal |
Mechanical connection | M14 x 1 |
Body material | Aluminum |
Ambient temperature | -25 ... 85 °C |
IP degree of protection | IP67 (DIN EN 60529) |
Output signal | 4 ... 20 mA, ISDS |
Electrical connector | M16 x 0.75, 6-pin |
Part No. | 3410-1400-A233Z1S |

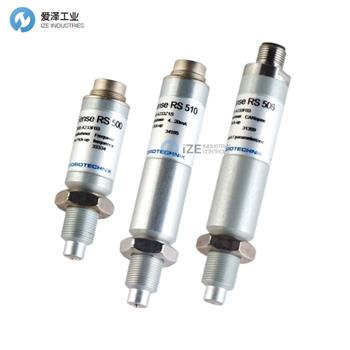

HYDROTECHNIK傳感器HySense RS 5xx系列介紹
HySense RS 5xx 是 Hydrotechnik 革命性的電感式傳感器系列，能夠以極高的精度和穩定性檢測旋轉部件的頻率。這些傳感器內置具有強大計算能力的微控制器，因此也被稱為“智能傳感器”。反過來，這種傳感器智能功能使其能夠根據傳感器本身的線性化表修改信號，從而輸出經過補償?shù)妮敵鲂盘?hào)（RS 506、RS 510）。
堅固耐用且緊湊的設計使其安裝簡便快捷，并適用于惡劣環境。該傳感器系列專為 Hydrotechnik 渦輪流量計開發，但也可用于各種測量任務。
HySense RS 5xx is Hydrotechnik’s revolutionary inductive sensor series, which detects the frequency of rotating components with extremely high accuracy and stability. These sensors contain a microcontroller with sufficient computing power, and are accordingly also referred to as “intelligent sensors.” In turn, this sensor intelligence makes it possible to modify a signal on the basis of linearization tables in the sensor itself so that a compensated output signal can be output (RS 506, RS 510).
A heavy-duty and compact design makes easy and fast installation possible and means that these sensors can be used in harsh environments. This sensor series was developed specifically for Hydrotechnik turbine flow meters, but can also be used for a broad range of measuring tasks.
HYDROTECHNIK傳感器HySense RS 5xx系列其他常用型號：
HYDROTECHNIK 3410-1400-A233Z1S
HYDROTECHNIK 3410-1600-A233F03
HYDROTECHNIK 3410-1600-A211F07
HYDROTECHNIK 3410-1400-A213C11
HYDROTECHNIK 3410-1400-A211Z13
HYDROTECHNIK sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDROTECHNIK傳感器3410-1400-A233Z1S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDROTECHNIK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
