FLOW流量計FT-32參數描述
Specifications | |
Calibration accuracy | ±0.05% of reading, traceable to NIST |
Repeatability | ±0.05% of reading |
Linearity | ±0.10% with linearizing electronics |
Response time | 3-4mS typical |
Housing material | 316 stainless steel, standard |
Rotor material | 430F stainless steel, standard |
Temperature range | -450 to 750°F, dependent on bearing and pick-off |
Operating pressure | Up to 30,000PSIG, dependent on fitting |
Ball bearing material | 440C stainless steel or equivalent,Ceramic |
Journal bearing material | Ceramic, tungsten carbide,graphite |
Pick-off’s | Modulated carrier and magnetic |
Straight Run | 10D upstream and 5D downstream minimum |
Recommended filtration | Ball bearings: 10 to 100 microns(less filtration with larger sizes) Journal bearings: 75 to 100 microns |
FLOW流量計FT系列介紹
FT系列流量計用于各種應用。例如汽車和航空航天試驗臺;海底控制系統;航空改型渦輪發電機的反饋和控制系統;以及通用工業流量測量。該系列提供全系列的軸承，端接，校準和電子元件，使其成為最通用的，能夠滿足各種應用。

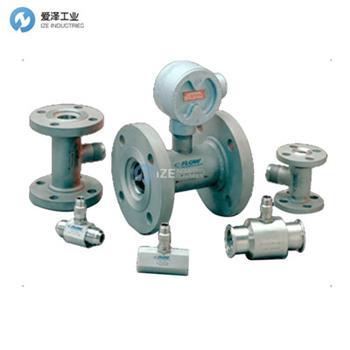

FT Series flow meters are used in a wide variety of applications. Some examples are automotive and aerospace test stands; subsea control systems; feedback and control systems on aeroderivative turbine generators; as well as general purpose industrial flow measurements. The full range of bearings, end connections, calibrations and electronics are available for this series making it the most versatile, capable of meeting a wide range of applications.
常用FLOW流量計型號：
FLOW FT-6
FLOW FT-8
FLOW FT-10
FLOW FT-12
FLOW FT-16
FLOW FT-20
FLOW FT-24
FLOW FT-32
FLOW FT-40
FLOW FT-48
FLOW FT-64
FLOW TURBINE METERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLOW流量計FT-32的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for FLOW products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
