METTLER TOLEDO稱重傳感器MTB-500Kg技術參數
Parameter | Specification |
Model No. | MTB |
Rated Capacity (R.C.) | 50(1102) kg (lb, nominal) |
Rated Output | 2 ± 0.1% mV/V @R.C. |
Zero load Output | ≤ 1 %R.C. |
Combined Error | C3: ≤ 0.018 / C6: ≤ 0.012 %R.C. |
Repeatability Error | C3: ≤ 0.01 / C6: ≤ 0.005 %A.L. |
Creep, 30 minute | C3: ≤ 0.017 / C6: ≤0.008 %A.L. |
Min. Dead Load Output Return (DR), 30 min | C3: ≤ 0.017 / C6: ≤0.008 %A.L. |
Temperature Range Compensated | -10 ~ +40 °C(+14 ~ +104 °F) |
Operating | -40 ~ +65 °C(-40 ~ +150 °F) |
Safe Storage | -40 ~ +80 °C(-40 ~ +176 °F) |
OIML / European Approvall | Class C3 |
NTEP Approval | Class III S / III M |
Excitation Voltage | Recommended 5~15 V AC/DC |
Terminal Resistance | Excitation ≥ 383 Ω |
Insulation Resistance @50VDC | > 5000 MΩ |
Breakdown Voltage | > 500 V AC |
Material | Spring Element stainless steel |

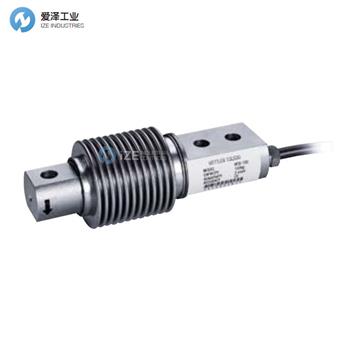

METTLER TOLEDO稱重傳感器MTB系列介紹
MTB 采用全密封設計，是工藝或食品應用中惡劣環境的理想選擇。
其量程范圍從5公斤到500公斤，可輕松稱量小型容器。不銹鋼設計、全密封和 IP68/IP69K 防護等級，為這些應用提供了可靠性。
MultiMount?提供鍍鋅和不銹鋼版本。
MTB稱重傳感器采用不銹鋼制成，并通過激光焊接進行全密封。這可防止傳感器受潮，從而實現最佳穩定性和測量性能。
Due to the hermetically sealed design, MTB is ideal for harsh environments in process or food applications.
The capacity range from 5kg to 500kg makes the weighing of small vessels possible. The stainless steel design, hermetic sealing and IP68/IP69K protection provides the best reliability in these applications.
MultiMount? is available in zinc plated and stainless steel version.
MTB load cells are made from stainless steel and hermetically sealed by laser welding. This protects the load cell from damp for the best stability and measuring performance.
METTLER TOLEDO稱重傳感器MTB系列其他常用型號：
METTLER TOLEDO MTB-5Kg
METTLER TOLEDO MTB-10Kg
METTLER TOLEDO MTB-20Kg
METTLER TOLEDO MTB-30Kg
METTLER TOLEDO MTB-50Kg
METTLER TOLEDO MTB-100Kg
METTLER TOLEDO MTB-200Kg
METTLER TOLEDO MTB-300Kg
METTLER TOLEDO MTB-500Kg
METTLER TOLEDO load cells NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于METTLER TOLEDO稱重傳感器MTB-500Kg的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for METTLER TOLEDO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
