NEXON溫度傳感器TN3000系列技術參數
Measuring range | |
TN3000 | -50…125℃ |
Supply voltage | 12…30Vdc |
No-load current consumption | ≤30mA, 24Vdc powered by |
Switch output | |
Output type | Push-pull (compatible with PNP and NPN), normally open and normally closed can be set |
S1,S2Output current | <500mA |
Response time | <10ms |
Voltage drop | <1V |
Switching Accuracy | ≤±0.5%Range |
Current mode analog output | |
Output type | Third line4…20mA |
LoadRA | RA≤0.5KΩ |
Linearity | ≤±0.5%Range |
Voltage analog output | |
Output type | Third line0…5V |
LoadRA | RA>10KΩ |
Linearity | ≤±0.5%Range |
Wiring protection | Reverse phase, overload, short circuit protection |
Show | |
Design | Red 4 bit 8mm high brightnessled |
Display range | -1999…9999 |
Accuracy | ≤±0.5%Range |
Stability (annual drift) | ≤±0.3%Range |
Temperature | |
Medium temperature | -50…125℃ |
Ambient temperature | -40…85℃ |
Storage temperature | -40…100℃ |
Probe withstand voltage | 200bar |
Material | |
Head case | Zinc alloy |
Case | Stainless steel304 |
Media contact part | Stainless steel316 |
Degree of protection | IP67 |
Outgoing way | M12×1Connector |
Process connection | G1/4external thread ED seal |

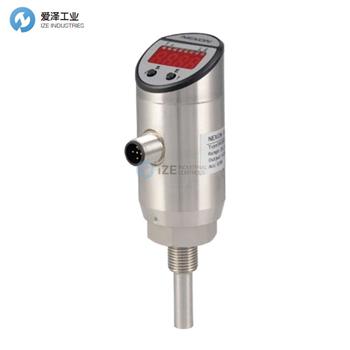

NEXON溫度傳感器TN3000系列介紹
TN3000采用高精度傳感器測量溫度，并將輸出信號處理為標準電信號輸出顯示。全金屬外殼；可旋轉高亮LED顯示屏；雙按鍵設計和人性化菜單；多種過程連接可選：3個30°可旋轉指示器。
TN3000 measures the temperature with a high-accuracy sensor and output signal is processed to standard electricai signal for outputing and dispiaying. All-metal housing; rotatable highlight LED display; dual keys design and friendly menu; multiple process connections selectable: 3 30° rotatable indicator.
NEXON溫度傳感器TN3000系列其他常用型號
NEXON TN3000/21G14MSM010D8
NEXON TN3000/21G14MSM035D8
NEXON TN3000/21G14MSM085D8
NEXON TN3000/21G14MSM135D8
NEXON TN3000/21G14MSM235D8
NEXON TN3000/21G14MSM335D8
NEXON TN3000/22G14MSM010D8
NEXON TN3000/22G14MSM035D8
NEXON TN3000/22G14MSM085D8
NEXON TN3000/22G14MSM135D8
NEXON TN3000/22G14MSM235D8
NEXON TN3000/22G14MSM335D8
NEXON TN3000/21G12MSM300D8
NEXON Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NEXON溫度傳感器TN3000/21G12MSM300D8的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NEXON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
NEXON溫度傳感器TN3000系列TN3000/21G12MSM300D8技術參數及介紹
