KUBLER編碼器Sendix 5000系列技術參數
Dimension | ? 50 mm |
Shaft type | 6 mm shaft, with flat surface |
Flange type | Synchro flange / Servo flange |
Working temperature | -40 °C ... +85 °C |
Protection level | IP65 |
Connection types | Axial cable |
Max. rotational speed | 12.000 min-1 |
Weight | 400 g |
Scanning | optical |
Resolution max. | 5.000 ppr incremental |
Power supply | 5 V DC |
Interfaces | Gegentakt |

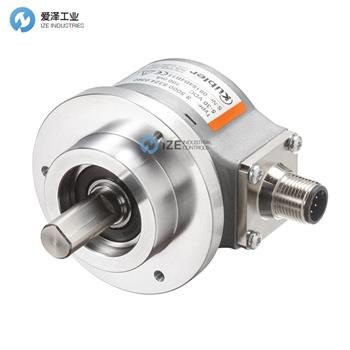

KUBLER編碼器Sendix 5000系列描述
Sendix 5000/5020增量式編碼器采用 Safety Lock? 設計的堅固軸承結構，具有卓越的抗振和安裝誤差能力。穩定的壓鑄外殼、高達 IP67 的防護等級以及-40 °C至+85 °C的寬溫范圍使其應用范圍廣泛。該系列編碼器持續進行技術開發，現已提供多種獨特的訂購選項。
Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock? design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40 °C to +85 °C allow universal use. This family of encoders is subject to continuous technical development and now offers a unique variety of ordering options.

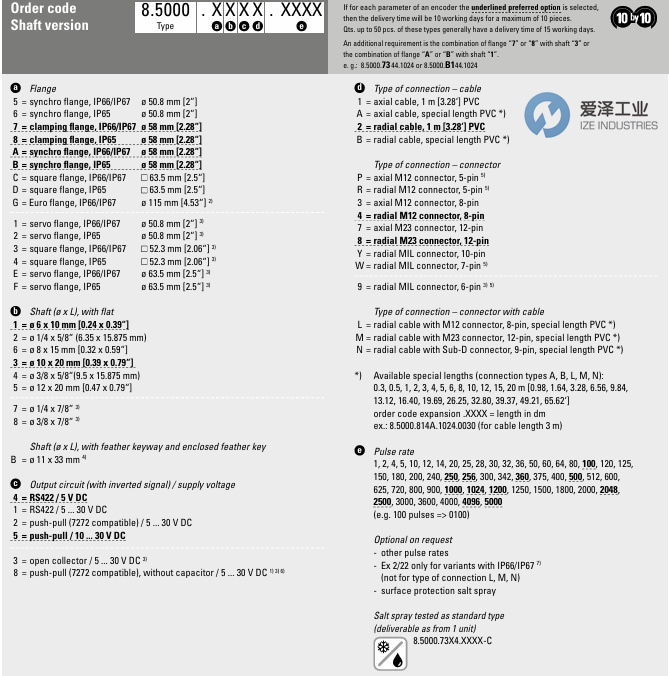

KUBLER編碼器Sendix 5000系列選型
KUBLER編碼器Sendix 5000系列其他常用型號：
KUBLER 8.5000.8354.1000
KUBLER 8.5000.8354.1024
KUBLER 8.5000.8354.1200
KUBLER 8.5000.8354.1250
KUBLER 8.5000.8354.1500
KUBLER 8.5000.8354.1800
KUBLER 8.5000.8354.1024
KUBLER 8.5000.5141.1000
KUBLER 8.5000.5141.1024
KUBLER 8.5000.5141.1200
KUBLER encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KUBLER編碼器8.5000.8354.1000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
KUBLER編碼器Sendix 5000系列8.5000.8354.1000技術參數及介紹
