KYTOLA流量計SLM系列技術參數
Technical data | |
Body Material | POM (*PVDF optional material, code "K") |
Flow tube | PSU with standard POM body (*optional borosilicate glass tube, code "L") |
Metallic parts | AISI 316L |
Float | AISI 329 |
Seals | Viton (*EPDM) |
Maximum pressure | 290 psi (20 bar) |
Maximum temperature | 212°F (100°C) |
Minimum temperature | -4°F (-20°C) |
Connections | 3/8" hose barb (3/8" straight tube with option "N") |
Weight | 2.65 lbs. |
KYTOLA流量計SLM系列介紹
SLM型是一款精確、高效、可靠的流量計，專為需要不間斷密封水流的應用而設計。適當調整流量和壓力將顯著節省水和能源。
堅固緊湊的設計確保最大程度地抵抗外部沖擊。SLM已經過優化，可承受受污染的水，并配有內置流量管清潔器。其可靠和準確的流量測量基于使用自由浮動浮子的可變面積計量原理。
SLM有許多不同的型號，可確保與所有密封類型兼容。通過安裝電感式接近傳感器，SLM還可以輕松配備警報輸出。典型應用是沖洗和凈化水應用、壓蓋填料、單機械密封和雙機械密封。

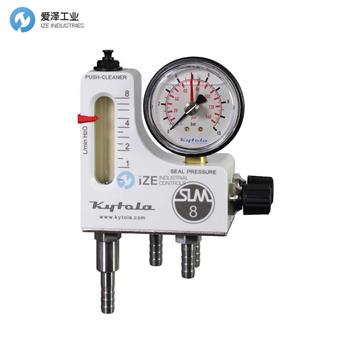

Model SLM is an accurate, efficient and reliable flow meter that is specially designed for applications where uninterrupted seal water flow is required. Proper adjustment of flow and pressure will result in significant water and energy savings.
The strong and compact design ensures maximum resistance to external impact. The SLM has been optimized to withstand contaminated water and it comes with a built-in flow tube cleaner. Its reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float.
The SLM comes in many different models, which guarantees compatibility with all seal types. The SLM can also be easily equipped with an alarm output by installing an inductive proximity sensor. Typical applications are flushing and purge water applications, gland packings, single and double mechanical seals.

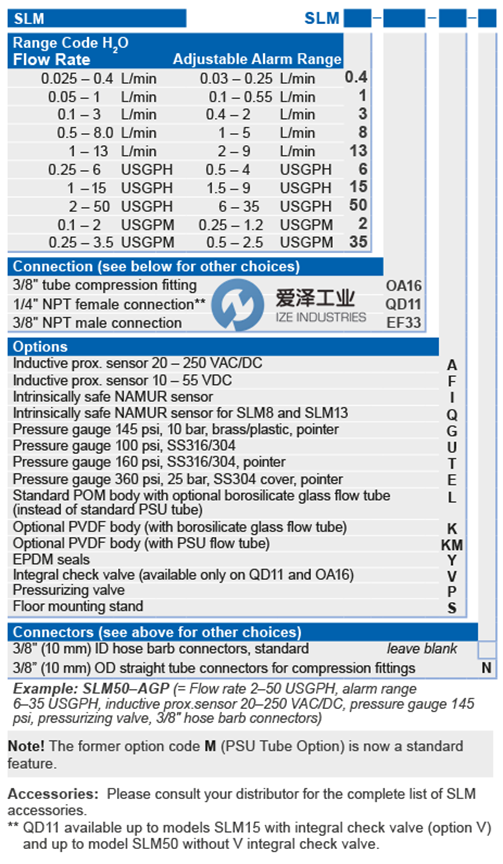

KYTOLA流量計SLM系列選型
KYTOLA流量計SLM系列其他常用型號：
KYTOLA SLM8-GPF-S
KYTOLA SLM8-TF05-G
KYTOLA SLM8-G-1LK-M18-A
KYTOLA SLM8-GH03-G
KYTOLA SLM8-GH03-P
KYTOLA SLM8-GKS
KYTOLA SLM50–AGP
KYTOLA flow meter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KYTOLA流量計SLM8-GPF-S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KYTOLA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
KYTOLA流量計SLM系列SLM8-GPF-S技術參數及選型
