AVENTICS調節閥R412006210技術參數
Specifications | |
Parts | Filter pressure regulator |
Reservoir | reservoir, polycarbonate, with PA protective guard |
Port | G 3/8 |
Nominal flow Qn | 2600 l/min |
Filter porosity | 5 μm |
Condensate drain | fully automatic, open without pressure |
Pressure gauge | with pressure gauge |
Working pressure min. | 1.5 bar |
Working pressure max | 16 bar |
Min. ambient temperature | -10 °C |
Max. ambient temperature | 50 °C |
Regulation range min. | 0.5 bar |
Regulation range max. | 8 bar |
Lock type | for padlocks |
Type | 1-part |
Type | Can be assembled into blocks |
Pressure supply | single |
Mounting orientation | vertical |
Regulator type | Diaphragm-type pressure regulator |
Regulator function | with relieving air exhaust |
Filter element | exchangeable |
Filter reservoir volume | 28 cm3 |
Max. achievable compressed air class acc. to ISO 8573-1:2010 | 6 : 7 : - |
Medium | Compressed air, Neutral gases |
Weight | 0.437 kg |
AVENTICS調節閥R412006210產品介紹

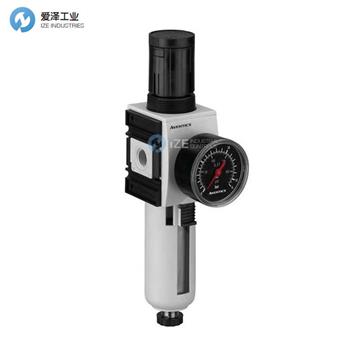

AVENTICS? 過濾壓力調節閥，AS2-FRE 系列 R412006210
特征
這個模塊化多功能系列可以組合大量不同的功能
緊湊的尺寸節省空間
減少能源消耗
輕的
易于使用的設計
專用安全組件確?？煽?、安全
組裝簡單，維護工作量低
AVENTICS? Filter pressure regulator, Series AS2-FRE R412006210
Features
This modular versatile series allows to combine a huge range of different functions
The compact dimensions save space
Reduced energy consumption
Lightweight
Easy-to-use design
Reliable and safe due to dedicated safety components
Simple assembly and low maintenance efforts
AVENTICS調節閥AS2系列其他常用型號：
AVENTICS R412006000
AVENTICS R412006001
AVENTICS R412006002
AVENTICS R412006003
AVENTICS R412006004
AVENTICS R412006005
AVENTICS R412006006
AVENTICS R412006007
AVENTICS R412006008
AVENTICS R412006009
AVENTICS R412006210
AVENTICS FILTER PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS調節閥R412006210的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
