REXROTH閥L8_10… (ED1-Z)系列技術參數
General | |
Valve element with 2 solenoids | 1.55 kg (3.42 lbs) |
Valve element with 1 solenoid | 1.25 kg (2.76 lbs) |
Valve element with 2 solenoids, with lever type emergency | 1.9 kg (4.2 lbs) |
Valve element with 1 solenoid, with lever type emergency | 1.6 kg (3.5 lbs) |
Ambient Temperature | –20 °C....+50 °C (-4 °F....+122 °F) (NBR seals) |
MTTFd | 150 years |
Hydraulic | |
Maximum inlet flow | 30 l/min (7.9 gpm) |
Hydraulic fluid | Mineral oil based hydraulic fl uids HL (DIN 51524 part 1). |
Fluid Temperature | –20 °C ....+80 °C (-4 °F....+176 °F) (NBR seals) |
Permissible degree of fl uid contamination | ISO 4572: βx≥75 X=12...15 |
Viscosity range | 5....420 mm2/s |
Electrical | |
Voltage type | DC (AC only with RAC connection) |
Voltage tolerance (nominal voltage) | -10 % .... +10 % |
Duty | Continuous, with ambient temperature ≤ 50°C (122°F) |
Coil wire temperature not to be exceeded | 150 °C (302 °F) |
Insulation class | H |
Compliance with | Low Voltage Directive LVD 73/23/EC (2006/95/EC), 2004/108/EC |
Coil weight with connection EN 175301-803 | 0.215 kg (0.44 lbs) |

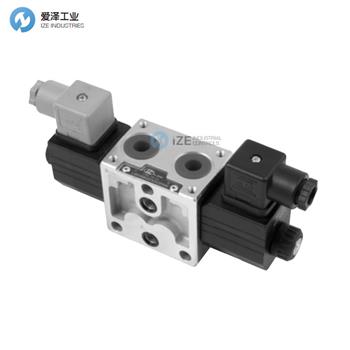

REXROTH閥L8_10… (ED1-Z)系列介紹
帶電磁控制方向閥芯的閥芯。
控制閥芯由帶可拆卸線圈的電磁閥控制。
斷電狀態下，控制閥芯由復位彈簧保持在中間位置。
直流線圈采用濕式針管，帶推桿用于機械超控；表面鍍鎳。
線圈可繞管旋轉 360°；可通過帶整流器 (RAC) 的特殊連接器接入交流電。
可選配手動超控（按鈕式或螺旋式）
Valve elements with solenoid operated directional spool.
Control spools operated by solenoids with removable coils.
In the de-energized condition, the control spool is held in the central position by return springs.
Wet pin tubes for DC coils, with push rod for mechanical override; nickel plated surface.
Coils can be rotated 360° around the tube; they can be energized by AC current through special connectors with rectifi er (RAC).
Manual override (push-button or screw type) available as option

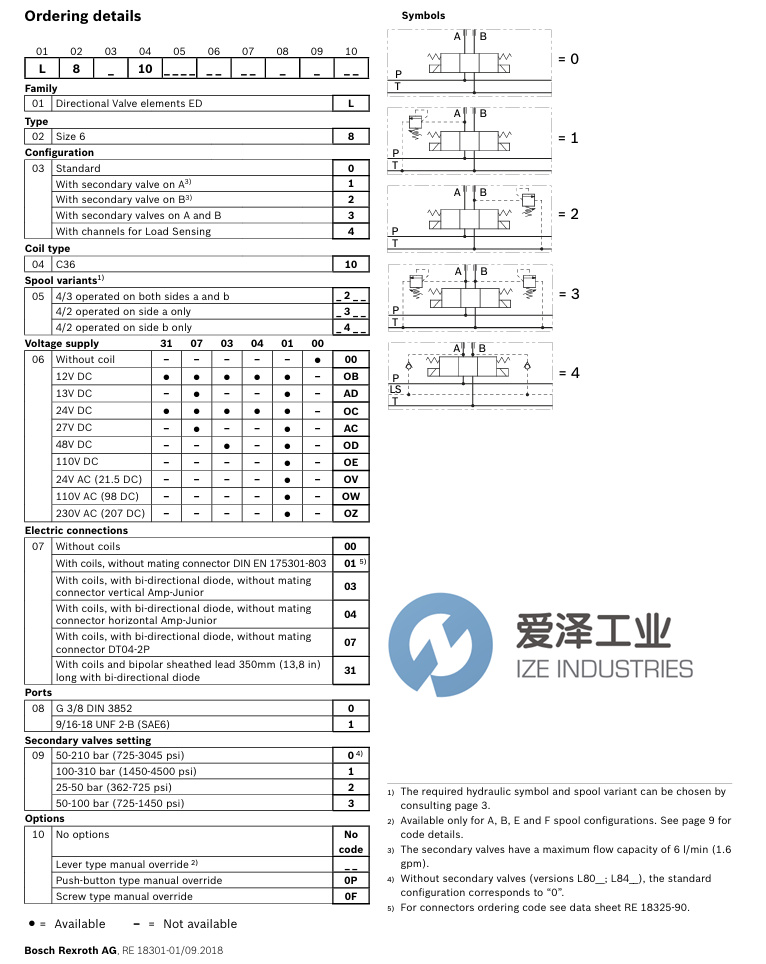

REXROTH閥L8_10… (ED1-Z)系列選型
REXROTH閥L8_10… (ED1-Z)系列其他常用型號：
REXROTH L8010E201000000 R933002238
REXROTH L8011E201000020 R933002302
REXROTH L8011E201000000 R933002301
REXROTH L8011C201OC0100 R933002296
REXROTH L8011B201OC0100 R933002281
REXROTH L8011B201OB0120 R933002277
REXROTH L8011B201000020 R933002273
REXROTH L8011B201000000 R933002272
REXROTH L8010Y301000000 R933002261
REXROTH L8010X301OC0100 R933002257
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
