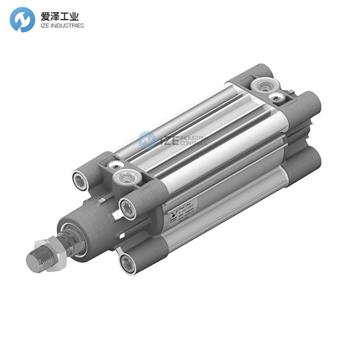

PNEUMAX氣缸1390系列介紹
Ecolight 系列 - 帶保護波紋管
模塊化波紋管可保護 Pneumax ECOLIGHT 系列氣缸的活塞桿和活塞桿鼻形密封圈，氣缸型號范圍從 ?32 至 ?100，最大行程長度為 1 米（所有型號均不含配備 Q 和 R 型刮刀密封圈的氣缸）。
其結構是將波紋管串聯安裝，并與安裝在活塞桿和前端蓋上的端板固定連接。
波紋管中間還設有一個帶襯套的導向墊圈（燒結青銅/PTFE），由活塞桿引導，以防止波紋管在活塞桿上滑動，并使其與氣缸保持方向一致。
波紋管可采用三種不同的材料制成，具體取決于溫度、應用場合或任何物質與氣缸接觸的可能性。
在工作過程中，波紋管會伸縮，這意味著需要控制波紋管內的空氣，具體方法如下：
- 非輸送式：端板上安裝有一系列通氣孔/過濾器，并安裝在活塞桿上。
- 輸送式：端蓋上的螺紋連接，安裝在氣缸前端蓋上。
組裝簡單，只需配備加長桿的氣缸。
可選配置：
- 帶波紋管的氣缸
- 波紋管套件（在通過過盈安裝波紋管端子之前，請先去除前蓋和活塞桿表面的油脂）。
Series Ecolight - with protective bellows
The
modular bellows has the function of protecting the piston rod and
piston rod nose seal on the Pneumax ECOLIGHT' cylinder range from ?32 to
?100 to a maximum stroke length of 1 mtr (all versions excluding
cylinders fitted with the Q and R scraper seal).
It is constructed by mounting the bellows in series fixed with end plates mounted on the piston rod and front end cap.
There
is also a guide washer with bushing (Sintered bronze/PTFE) placed in
the middle of the bellows and guided by the piston rod to prevent the
bellows sliding on the rod and to keep the orientation in line with the
cylinder.
The bellows can be constructed from three different
materials depending on the temperature, application or the possibility
of any substance coming into contact with the cylinder.
During
operation the bellows extend and retract which means the air contained
within the bellows needs to be controlled, this is achieved by;
- NON CONVEYED: a series of breathers/filters on the end plate fitted to the piston rod.
- CONVEYED: a threaded connection on the end cover fitted to the cylinders front end cap.
Assembly is simple and requires a cylinder with extended rod
Are available:
-cylinder with bellows
-kit bellows (degrease the surface of the front cover and the piston rod before mounting the bellows terminals by interference).
