REXROTH齒輪泵AZPF-11-004RAB01MB技術規格
Max. flow [l/min] | 16 |
Size (geometric displacement) [cm3/rev] | 4 |
Maximum intermittent pressure [bar] | 210 |
Maximum rotational speed [rpm] | 4000 |
Drive shaft | Straight shaft ISO Dia. 18 mm |
Direction of rotation | Clockwise rotation |
Front cover | Rectangular flange Dia. 80 mm |
Housing material | Aluminum |
Noise level | Standard noise level |
Application | general |
External gear unit | External Gear Unit |
External gear unit function | Pump |
Series | Model F (4 ... 28 cm3/rev) |
Unit version | Bearing diameter 18mm |
Version | phosphatized, pinned |
Line connection | Pipe thread DIN EN ISO 228-1 |
Sealing material | NBR |
Rear cover | Standard (cast iron) |
Weight [kg] | 3.5 |

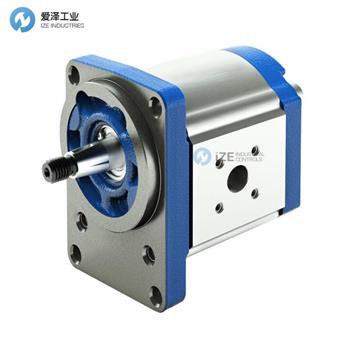

REXROTH齒輪泵AZPF-11-004RAB01MB產品介紹
外嚙合齒輪泵的關鍵任務是將機械能（扭矩和轉速）轉換為液壓能（流量和壓力）。為了避免不必要的高熱損失，需要高效率的裝置。這些都是通過壓力相關的間隙密封和高精度制造技術來實現的。
? 高負載滑動軸承
? 驅動軸符合 ISO 或 SAE 以及客戶特定的解決方案
? 使用壽命長
? 基于大批量生產的始終如一的高品質
? 端口連接：法蘭或螺紋
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
? Slide bearings for high loads
? Drive shafts according to ISO or SAE and customer specific solutions
? Long service life
? Consistent high quality based on large-volume production
? Port connections: flanged or threaded

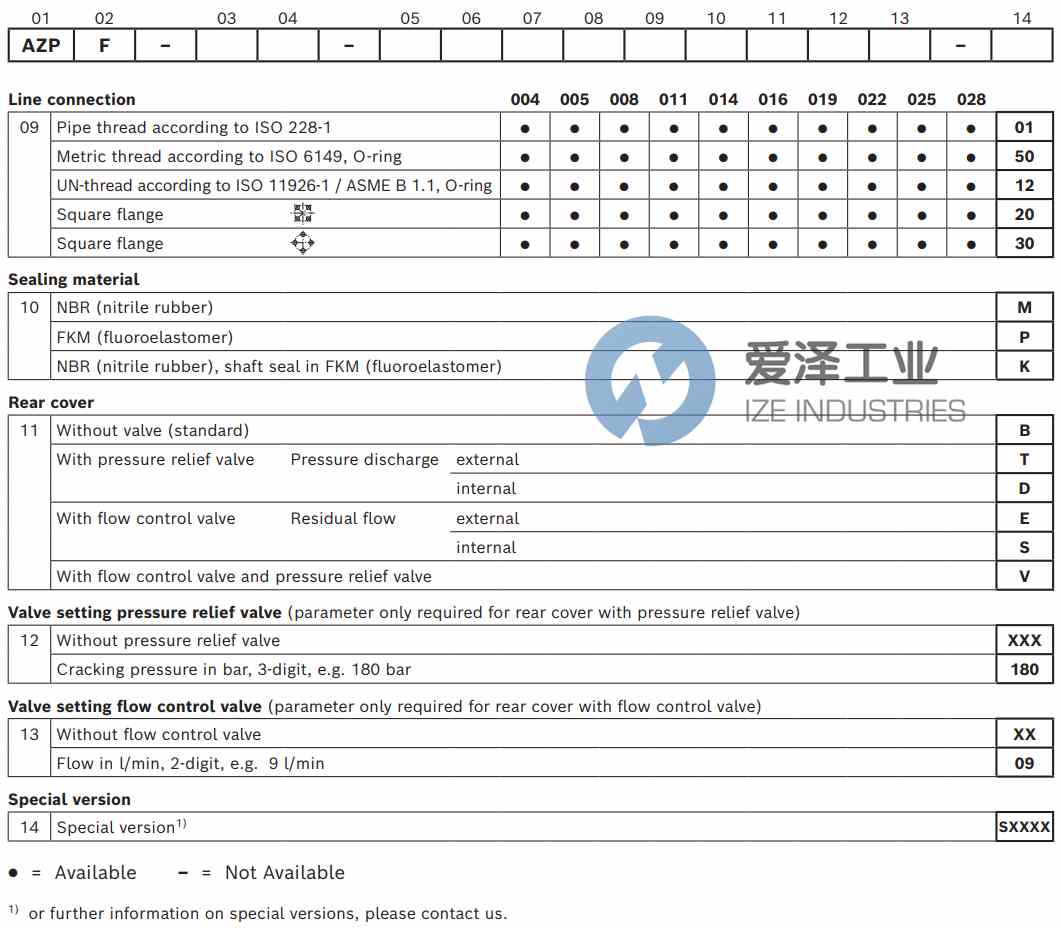

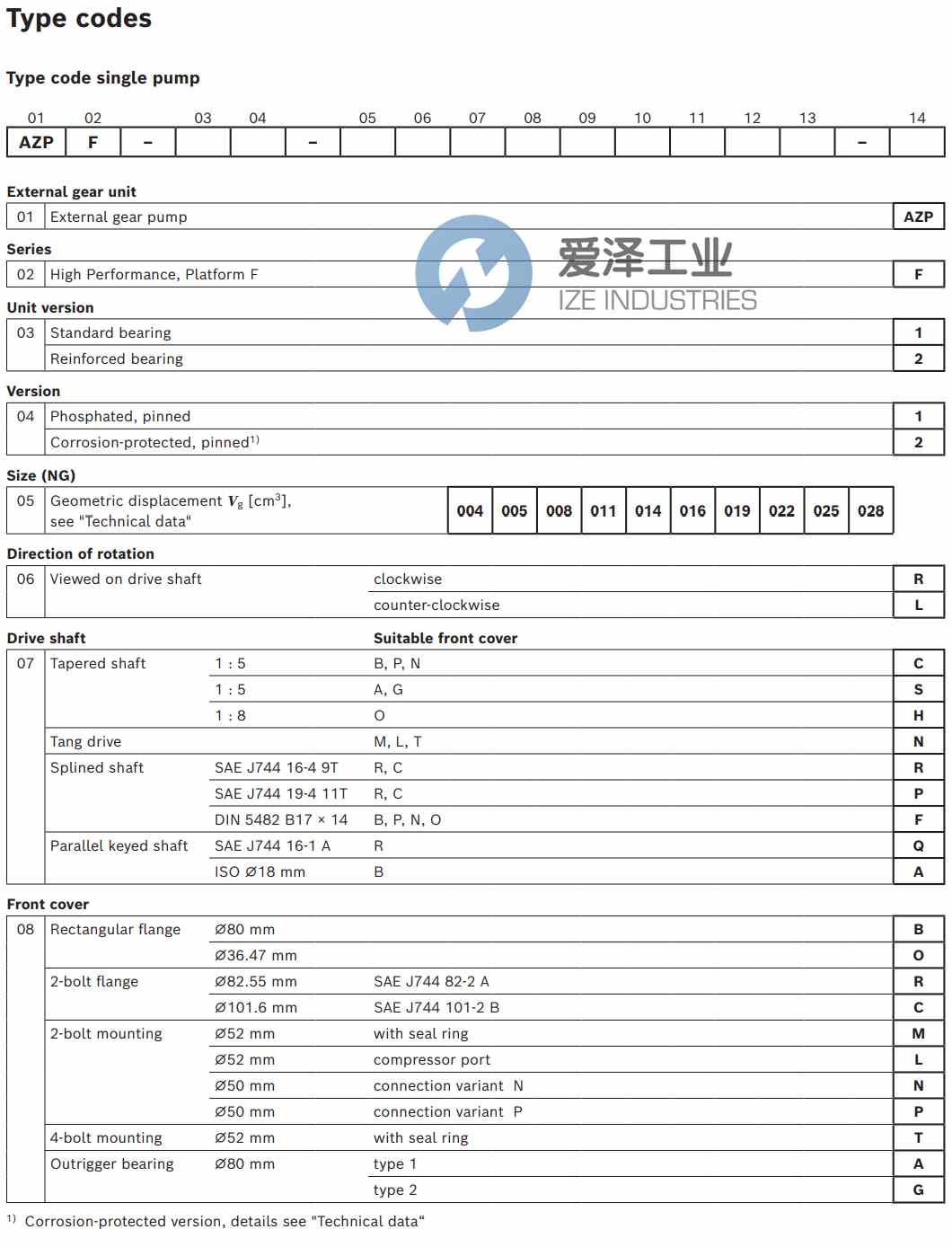

REXROTH齒輪泵AZPF系列選型
REXROTH齒輪泵AZPF系列其他常用型號：
REXROTH AZPF-10-004RRR20MB
REXROTH AZPF-10-011RHO30MB
REXROTH AZPF-10-011RHO30PB-S0285
REXROTH AZPF-10-014LCP20MB-S0288
REXROTH AZPF-10-014LHO30PB-S0285
REXROTH AZPF-10-014LHXXXMB-S0041
REXROTH AZPF-10-016LFP20PB-S0003
REXROTH AZPF-10-016LHO30KB
REXROTH AZPF-10-019LFP20PB-S0003
REXROTH AZPF-10-022RSG20PB-S0012
REXROTH AZPF-10-025RHO30PB-S0285
REXROTH AZPF-11-004LCB20MB
REXROTH AZPF-11-004RAB01MB
REXROTH AZPF-11-005LCB20MB
REXROTH PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH齒輪泵AZPF-11-004RAB01MB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
REXROTH齒輪泵AZPF系列AZPF-11-004RAB01MB技術參數及選型
