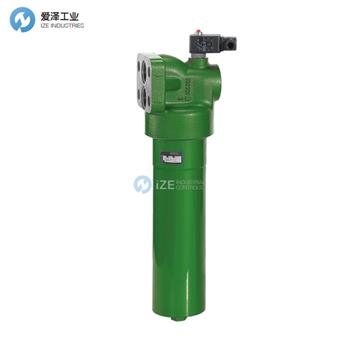

FG過濾器PI3411-012介紹
Specification | |
Filter type | Medium pressure filter |
Series | Pi 340 |
Nominal size | 110 l/min |
Connection type | Flangeable |
Connection size | DN 15 |
max. operating pressure | 350 bar |
Operating temperature range | -10°C - +120°C |
Sealing material | NBR |
Filter head material | GGG |
Filter housing material | Steel |
Element pick-up | FG Standard |
Bypass valve (bar) | 7,00 |
Maintenance indicator | Yes |
Element installation | No |
Maintenance indicator type | Differential pressure indicator |
Evaluation maintenance indicator | mechanical |
Indicator setting | 5,0 bar |
Country of origin / region | DE/08 |
Product weight | 5,350 KG |
FG過濾器PI3411-012介紹
產品系列中提供一系列中壓濾清器，適用于液壓系統和潤滑系統。這些濾清器具有不同的設計和尺寸，適應不同的壓力等級。堅固的外殼能夠承受強大的操作壓力，而空氣動力學設計確保了最大性能。
為了在液壓系統、潤滑系統和試驗臺中使用，開發了多種高效的壓力濾清器，能夠持續確保液體和油的純度等級符合要求。
公稱尺寸達450
適用于連接控制塊
緊湊設計節省空間
由于空氣動力學設計，壓力損失小
We have a comprehensive range of medium pressure filters in our product range for hydraulic systems and lubrication systems. These are available in different designs and dimensions as well as for different pressure levels. The robust housing can withstand even strong operating pressure. The robust housing can also withstand strong operating pressure, while the aerodynamic designs ensure maximum performance.
For use in hydraulic systems, lubrication systems and test benches, we developed a wide range of efficient pressure filters that permanently ensure compliance with the purity classes of fluids and oils.
Nominal size to 450
Intended for attachment to control blocks
Small space requirement due to a compact design
Minimal pressure loss thanks to the aerodynamic design of the components
FG過濾器常用備件型號：
FG PI 3411-010
FG PI 3411-012
FG PI 3411-013
FG PI 3411-015
FG PI 3415-014
FG PI 3415-015 FKM
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FG過濾器PI3411-012的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.jjxdch.cn.
FG過濾器PI3411-012技術參數介紹
