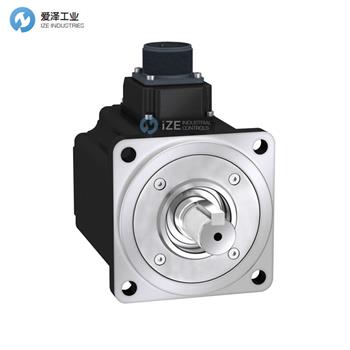

SCHNEIDER伺服電機BCH2LH1033CA6C技術參數
Specifications | |
range compatibility | Lexium 28 |
Product or component type | Servo motor |
device short name | BCH2 |
Maximum mechanical speed | 5000 rpm |
[Us] rated supply voltage | 220 V |
Network number of phases | Single phase |
Continuous stall current | 5.83 A |
Continuous power | 1000 W |
Maximum current Irms | 18.9 A for LXM28... at 1 kW, 220 V |
Maximum permanent current | 6.64 A |
Shaft end | Keyed |
Feedback type | 20 bits single turn absolute encoder |
Holding brake | Without |
mounting support | Asian standard flange |
Motor flange size | 100 mm |
Electrical connection | Connector MIL |
Torque constant | 0.55 N.m/A at 20 °C |
Back emf constant | 33 V/krpm at 20 °C |
Maximum radial force Fr | 570 N at 3000 rpm |
Maximum axial force Fa | 200 N |
Brake pull-in power | 10.4 W |
Type of cooling | Natural convection |
Length | 153.5 mm |
IP degree of protection | IP50 IM V3 |
Ambient air temperature for operation | -20…40 °C |
Net weight | 4.6 kg |
SCHNEIDER伺服電機BCH2LH1033CA6C產品介紹
該產品屬于 Lexium 28 系列，提供 0.05kW 至 4.5kW 的伺服電機。伺服電機的機械速度上限為 5000RPM，帶鍵軸端，不帶抱閘。它配備了20bit單圈絕對值編碼器。是第二代伺服電機，額定電源電壓220V，持續堵轉電流5.83A，持續功率1000W。軸尺寸為 22 毫米（直徑）x 45 毫米（長度）。它配備有用于電氣連接的 MIL 連接器。它是 IP50 和 IP65 等級的產品。該產品的長度為153.5毫米，定心環尺寸為7毫米（深度）x 95毫米（直徑），安裝孔為115毫米。它重4.6公斤。它適用于機器控制解決方案。該系列與 Lexium 28 伺服驅動器兼容。本產品兼容1kW 220V單相LXM26D伺服驅動電機和LXM26D伺服驅動電機。它支持 100mm 亞洲標準法蘭安裝，具有自然對流冷卻系統。Lexium 28 系列提供預先確定的組合，以滿足運動控制應用的要求并優化安裝性能。Lexium 28 伺服驅動器和 Lexium BCH2 伺服電機是用于緊湊型機器的優化伺服套件。
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 5.83A and a continuous power of 1000W. The shaft dimensions are 22mm (diameter) x 45mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 153.5mm and the centering collar dimensions are 7mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 4.6kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 1kW 220V single phase and LXM26D servo drive motor. It supports 100mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
SCHNEIDER伺服電機Lexium 28系列其他常用型號：
SCHNEIDER BCH2MBA533CA5C
SCHNEIDER BCH2MB0133CA5C
SCHNEIDER BCH2LD0233CA5C
SCHNEIDER BCH2LD0433CA5C
SCHNEIDER BCH2LF0433CA5C
SCHNEIDER BCH2HF0733CA5C
SCHNEIDER BCH2LF0733CA5C
SCHNEIDER BCH2LH1033CA6C
SCHNEIDER BCH2MM1023CA6C
SCHNEIDER BCH2MM1523CA6C
SCHNEIDER BCH2MM2023CA6C
SCHNEIDER BCH2MR3023CA6C
