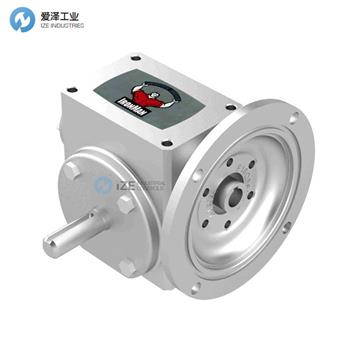

IRONMAN減速機SS-BMQ-815-15-D-56技術參數
Technical Specifications | |
Assembly: | SS-BMQ-D |
Output RPM: | 116.7 |
Input Style: | C-Face Quill |
Frame Size: | 56C |
Ratio: | 15:01 |
Output HP: | 0.826 |
Reduction: | Single |
Series: | Stainless Steel Worm Gear Reducers |
Gear Type: | Worm |
Output Shaft Direction: | Double |
Output Shaft Assembly Code: | D |
Service Factor: | 1 |
Output Diameter (in): | 0.750 in |
Certifications: | IP69K, USDA Accepted Equipment |
No. of Gear Reductions: | Single |
Motor Frame Size: | 56C |
Output Shaft: | Shaft |
Reducer Style: | SS-BMQ |
Mounting Style: | Base |
Series Code: | SS |
Input RPM: | 1,750 |
Overhung Load: | 860 |
Nominal Motor HP Rating to HP @ 1750 RPM: | 1 |
Output Style: | D |
Input HP: | 1.003 |
Product Type: | Right Angle |
Product Line: | Stainless Steel Worm Gear Reducers |
Input Diameter (in): | 0.625 in |
Ratio Range: | 15:01 |
Center Distance (in): | 1.54 |
Reducer: | Worm - Right Angle |
Output Shaft Orientation: | LR |
Output Torque Rating (in-lb): | 446 in/lbs |
Housing Material: | Stainless Steel |
IRONMAN減速機SS-BMQ-815-15-D-56產品特點介紹
主要特點
316不銹鋼外殼和蓋子，能夠承受極端環境。
工廠內填充優質Mobil Glygoyle 460聚醚多元醇潤滑劑，獲得美國農業部H1級認證。
采用Enviroseal技術的無通氣孔“終身密封”設計。
Viton?雙唇密封提供了對高溫、磨損和化學物質的強大抵抗力，從而延長使用壽命。
輸入法蘭面的O形圈提供了防潮的密封。
具有303不銹鋼輸出軸或套筒。
蝸桿經過切割、熱處理、磨削和拋光，確保高效、安靜的運行。
所有裝置在工廠進行了100%運行和泄漏測試，確保產品質量最高。
提供終極應用靈活性，包括多角度安裝、最廣泛的附件基座和法蘭選擇以及最大多樣性的庫存減速機樣式。
安裝尺寸可與大多數行業標準減速機互換。
KEY FEATURES
316 stainless steel housing and covers to withstand extreme environments.
Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant – USDA Class H1 approved.
Vent-free “sealed-for-life” design with Enviroseal technology.
Viton? double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.
O-ring on face of input flange provides a positive seal against moisture intrusion.
303 stainless steel output shaft or sleeve
Worms are cut, heat-treated, ground and polished to provide efficient, quiet operation.
All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.
Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.
Mounting dimensions are interchangeable with most industry standard reducers.
