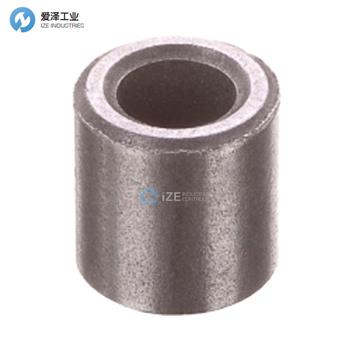

GGB襯套FP20系列技術規格
BEARING PROPERTIES | |
Maximum load, p | |
- Static | 45N/mm2 |
- Dynamic | 8.0-22.5N/mm2 |
Operating Temperature | |
- Min | -180°C |
- Max | 90°C |
Operating Temperature | |
- Min | 5*°C |
- Max | 300*°C |
Minimum density | 5.6g/cm3 |
Dry | |
Minimum apparent porosity | 0.2 |
Oil Impregnated | |
Maximum sliding speed, U | 0.1-4.0*m/s |
Maximum pU factor | 0.1-1.8*N/mm2 x m/s |
Recommendations | |
Shaft surface roughness, Ra | |
- Normal | ≤ 0.2 - ≤ 0.3 *μm |
Shaft surface hardness | |
- Normal | > 240 - > 355 *HB |
GGB襯套FP20系列介紹
特點
與 SINT A 10 相似，浸漬組 1
適用于一般工程應用的免維護軸承
在相對輕載和高速下具有最佳性能
采用粉末冶金工藝生產，適用于復雜形狀
成分
GGB-FP20 METAFRAM
含油浸漬燒結鋼軸承
類似于 SINT A 10，浸漬組 1
Characteristics
Similar to SINT A 10, impregnation group 1
Maintenance-free bearing for general engineering applications
Optimum performance under relatively light loads and high speeds
Produced by powder metallurgy process and therefore suitable for complex shapes
Composition
GGB-FP20 METAFRAM
Oil Impregnated Sintered Steel Bearings
Similar to SINT A 10, Impregnation
Group 1
GGB襯套FP20系列其他常用型號：
GGB 505632FP20
GGB GGB-BP25
GGB GGB-SO16
GGB Cylindrical Bushes NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GGB襯套505632FP20的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GGB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
GGB襯套FP20系列505632FP20技術規格
