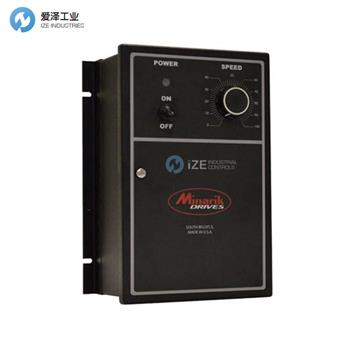

MINARIK驅動器C4XL3200A技術參數
ENCLOSURE | NEMA 4X | |||
MAXIMUM CURRENT (ADC) | 10 | |||
INPUT VOLTAGE (VAC) | 115 | 230 | ||
OUTPUT VOLTAGE (VDC) | 0 - 130 | 0 - 130 | 0 - 240 | |
POWER RANGE | HP | 1/4 - 1 | 1/4 - 1 | 1/4 - 1 |
KW | .20 - .75 | .20 - .75 | .40 - 1.5 | |
FIELD / SHUNT SUPPLY | 50 / 100 | 100 / 200 | ||
REVERSING | No | |||
ISOLATION | No | |||
MINARIK驅動器C4XL3200A產品介紹
Minarik Drives 的 C4XL3200A 濾波脈寬調制 (PWM) 變速直流驅動器可提供更強的性能。它安裝在 NEMA 4X 外殼內，確保免受沖洗、腐蝕性物質、風吹灰塵、偶然接觸封閉設備或無人看管的外部固體物體的影響。它向 1/2 至 2 HP 的有刷電機輸出近乎純凈的直流電。C4XL3200A 接受 115 或 230AC 輸入，分別輸出 0-130 或 240VDC；標準 90 或 180VDC SCR 電機可實現更高的速度。這項創新技術使用戶只需進行微小的校準調整即可操作許多低壓電機。
MOSFET 功率器件的開關頻率為 22kHz（高于可聽范圍），可在整個 100:1 速度范圍內提供快速電路響應和恒定的 1.05 外形尺寸。高效的 C4XL3200A 驅動器可提供涼爽、安靜的電機運行，并延長電刷壽命且維護成本低。此外，它還可以運行尺寸更小、電壓更低的電機，從而節省成本和空間。
Minarik Drives' C4XL3200A filtered pulse-width-modulated (PWM) variable speed DC drive provides exceptional performance. It is housed within a NEMA 4X enclosure, guaranteeing protection from washdown, corrosive moaterial, windblrown dust, incidental contact with enclosed equipment or unwatned external solid ojects. It outputs nearly pure DC power to brush-type motors ranging from 1/2 to 2 HP. The C4XL3200A accepts 115 or 230AC input to output 0-130 or 240VDC, respectively; resulting in higher speeds from standard 90 or 180VDC SCR duty motors. This innovative technology lets users operate many low voltage motors with only minor calibration adjustments.
MOSFET power devices switch at 22kHz, which is above the audible range, to provide fast circuit response and a constant 1.05 form factor over the entire 100:1 speed range. The highly efficient C4XL3200A drive provides cool, quiet motor operation with extended brush life and low maintenance. In addition, it can operate smaller size, lower voltage motors to provide both cost and space savings.
MINARIK驅動器XL系列其他常用型號：
MINARIK C4XL3025
MINARIK C4XL3200A
MINARIK XL3025A
MINARIK XL3050A
MINARIK XL3200A
MINARIK XL3300A
MINARIK DC Motor Control NEW + ORIGINAL+ ONE YEAR WARRANTY
