Product usage

Implement FOC transmission path (Incremental)

Supply voltage

12-30 VDC

Signal input

Transmitter LWLS-T (switchboard) uad LWL-T (housing for outdoor applications)
Signal input (from encoder):
Incremental: 0°, 90°, N, STATUS; each with inverted signals
Signal transmission (outputs transmitter module):
Optical (to decoder): Fiber optic 62.5/125 μm or 50/125 μm with ST plug-in connector
Signal level:
HTL or TTL (RS 422A)

Signal output

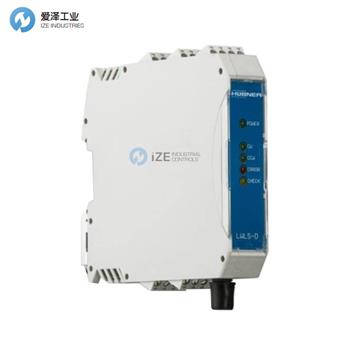

Decoder LWLS-D and LWLS-Di (galvanically isolated output blocks)
Signal output (to controller):
Incremental: 0°, 90°, N, STATUS; each with inverted signals
2 output blocks, optional additional galvanic isolation between the two output blocks (type LWLS-Di)
Signal transmission (inputs decoder module):
Optical (from transmitter): Fiber optic 62.5/125 μm or 50/125 μm with ST plug-in connector. All data via only one optical fibre.
Signal level:
HTL or TTL (2 output blocks, for each output block: HTL or TTL level)

Frequency range

0 – 100 kHz

Casing

Transmitter
LWLS-T: Electronic housing for standard mounting rails
LWL-T: Die cast metal aluminium housing for outdoor applications
Decoder
LWLS-D(i): Electronic housing for standard mounting rails

Dimensions

Transmitter
LWLS-T: 23 x 120 x 115 mm
LWL-T:  125 x 80 x 57 mm
Decoder
LWLS-D(i): 23 x 120 x 115 mm

Device temperature range

Transmitter
LWLS-T: -20 °C to +70 °C
LWL-T:  -25 °C to +85 °C
Decoder
LWLS-D(i): -20 °C to +70 °C

Degree of protection

Transmitter
LWLS-T: IP20 (switchboard)
LWL-T: IP66 (outdoor area)
Decoder
LWLS-D(i): IP20 (switchboard)

Electrical connection

Transmitter
LWLS-T: Connection terminals and FOC connector outside
LWL-T: Terminal box (terminal strip and FOC connector inside)
Decoder
LWLS-D(i): Connection terminals and FOC connector outside

Device options

Constant cycle time < 2 μs (transmitter input to decoder output)
Distances up to 1000 m
Optional cable break and status monitoring
2 output blocks, optional additional galvanic isolation between the two output blocks (type LWLS-Di)

Mechanical options

Aluminium die-cast housing for outdoor applications (Transmitter)

Special features and certificates

New transmission technology – patent pending
