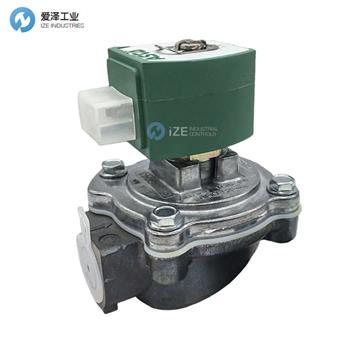

ASCO電磁閥SCG353G044 24VDC技術參數
Specifications | |
Coil Class | F |
Function | 2 way - 2/2 Normally Closed |
Pipe/Port Size | 1" |
Pressure Port/Fitting | G |
Voltage | 24 DC |
Wattage | 21.2 W |
Flow | From 10 to 20 Cv, from 35 to 57 Cv, from 60 to 140 Cv |
Voltage | 24 AC, 110 AC, 115 AC, 120 AC, 208 AC, 220 AC, 230 AC, 240 AC, 440 AC, 480 AC | 50, 60 Hz | 24V DC | other on request |
Operating Environment | Hazardous, Indoor, Outdoor |
Standards / Regulations | Class I Div 1, Class I Div 2, Class II Div 1, Class II Div 2, Type 1, Type 2, Type 3, Type 3R, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL, CSA, ATEX Zone 1a€“21, ATEX Zone 2a€“22 |
Temperature | -40°F to 140°F, -4°F to 284°F |
ASCO電磁閥353系列介紹
? 隔膜脈沖閥專為除塵器服務應用而設計，結合了高流量、長壽命和極快的開啟和關閉速度，可實現可靠且經濟的運行
? 高流量、角型閥體、無彈簧結構與特殊隔膜組件相結合，可提供除塵器服務應用所需的獨特操作特性
? 整體壓縮配件，安裝快速、簡單、安全
? 內置消音器可降低噪音并防止異物進入閥門
? 整體操作器配有環氧樹脂模制 F 級線圈。根據 ATEX 2014/34/EU 指令，可在同一個基本閥上安裝用于潛在爆炸性環境（氣體和粉塵）的各種可選防水防爆電磁閥
? 閥門滿足所有相關的 EC 指令
? The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
? The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
? Integral compression fittings for fast, easy, secure installation
? Built-in silencers reduce noise and prevent foreign particles from entering the valve
? The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explosive atmospheres (gas & dust) according to Directive ATEX 2014/34/EU can be mounted on the same basic valve
? The valves satisfy all relevant EC directives
ASCO電磁閥353系列其他常用型號：
ASCO G353A043
ASCO G353G043
ASCO G353A044
ASCO G353G044
ASCO G353G047
ASCO G353A047
ASCO G353A050
ASCO G353G050
ASCO G353A051
ASCO G353G051
ASCO G353G060
ASCO VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCO電磁閥SCG353G044 24VDC的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
