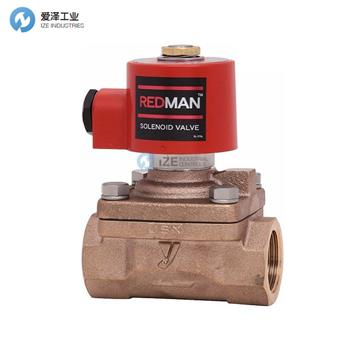

YOSHITAKE電磁閥DP-200F系列技術參數
Specifications | |
Features | AC, normally closed, flanged |
Type | Diaphragm type solenoid valve |
Specifications | |
Product type | Solenoid Valve_Diaphragm |
Nominal size | 15A (1/2") - 50A (2") |
Application | Cold and hot water,Air,N2 gas,CO2 gas (dry),Ar gas |
End connection | JIS 10K FF flanged |
Max. pressure | 1.0 MPa |
Working pressure | 0.0 - 1.0 MPa (not usable under vacuum) |
Min. differential pressure | 0 MPa (0.1 MPa or more is required when installed with the coil sideways) |
Working temperature | 5 - 60 degree(C) (no freeze condition) |
Ambient temperature | Max. 50 degree(C) (no freeze condition) |
Rated voltage | AC 110/220V selective type - 50/60Hz common |
Valve seat leakage | None (by confirming pressure gauge visually) |
Installation posture | Horizontal or vertical (the coil has to be within 90 degrees from upward position) |
Protection class | IP64 |
Material | |
Body | Bronze |
Valve | NBR (Diaphragm) |
YOSHITAKE電磁閥DP-200F系列介紹
DP-200F
水錘沖擊得以減弱，閥門關閉時間縮短。
閥座無泄漏，因?yàn)殚y體部分采用了合成橡膠材料。
適用于0到1.0 MPa（如果線圈側置，則為0.1到1.0 MPa）的寬壓范圍。
DP-200F
The shock of water hammer is reduced, and the closing time of valve is shortened.
No leakage at valve seat because synthetic rubber is used for valve part.
Usable for wide pressure range of 0 - 1.0 MPa (0.1 - 1.0 MPa if the coil set sideways).
YOSHITAKE電磁閥DP-200F系列其他常用型號：
YOSHITAKE DP-200F-50A
YOSHITAKE DP-200F-15A
YOSHITAKE DP-200F-20A
YOSHITAKE DP-200F-25A
YOSHITAKE DP-200F-32A
YOSHITAKE DP-200F-40A
