GO REGULATOR調節器C2-1F1E11110002A3A3技術參數
Standard items in bold | C2 |
BODY MATERIAL | 1 316L stainless steel, stainless steel diaphragm |
PORT CONFIGURATION | F Standard |
PROCESS PORT TYPES (GAUGE PORT TYPE, IF SPECIFIED) | 1 1?4? FNPT (1?4? FNPT gauge ports) |
OUTPUT RANGE | E 0–50 psig |
DIAPHRAGM TYPE, 1ST STAGE | 1 Standard diaphragm |
DIAPHRAGM TYPE, 2ND STAGE | 1 Standard diaphragm |
CAP ASSEMBLY, 1ST STAGE | 1 Tamper-proof |
CAP ASSEMBLY, 2ND STAGE | 1 Standard |
CGA FITTINGS | Use ‘000’ to omit CGA |
GAUGES | 2 Omit gauges |
1ST STAGE SEAT MATERIAL | A Tefzel? |
1ST STAGE Cv FLOW | 3 0.06 |
2ND STAGE SEAT MATERIAL | A Tefzel? |
2ND STAGE Cv FLOW | 3 0.06 |

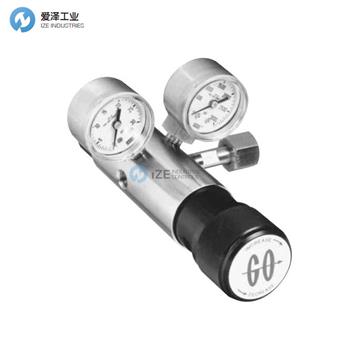

GO REGULATOR調節器CYL-20系列介紹
現在可以使用CYL-20系列調節器實現精確的壓力控制。該雙級調節器由316L不銹鋼和PTFE材質制成，在變化的進口壓力下，出口壓力變化不到0.01％，專為氣體校準系統和半導體材料加工設計。
該調節器僅采用316L不銹鋼、PTFE和Tefzel?材料，適用于腐蝕性介質以及具有表面吸附潛在問題的非腐蝕性介質。它支持高達6000 psig的進口壓力，具有氣密截止功能。操作溫度范圍可從?40°C變化至+260°C，出口壓力范圍（0–10 psig至0–500 psig）可通過帶槽的旋鈕方便調節。
Precision pressure control is now possible with the CYL-20 Series regulator. This two-stage regulator, constructed of 316L stainless steel and PTFE, has less than 0.01 percent outlet pressure change with varying inlet pressures and is designed for use in gas calibration systems and semiconductor materials processing.
With materials of only 316L stainless steel, PTFE and Tefzel?, this regulator is suitable for service in corrosive streams as well as non-corrosive streams with potential surface absorption problems. This regulator accepts inlet pressures up to 6000 psig and has bubble-tight shutoff. Operating temperature ranges may vary from ?40° C up to +260° C and outlet pressure ranges of 0–10 psig up to 0–500 psig are easily adjustable by a fl uted knob.
GO REGULATOR調節器其他常用型號：
GO REGULATOR C2-1F1E11110002A3A3
GO REGULATOR C2-1F1E11110002A3A3-SIL
GO REGULATOR C2-2F1C13110001ACAC
GO REGULATOR C2-1H1I11115801A3A3
GO REGULATOR ELECTRICALLY HEATED REGULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GO REGULATOR調節器C2-1F1E11110002A3A3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GO REGULATOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
GO REGULATOR調節器C2-1F1E11110002A3A3技術參數及選型
