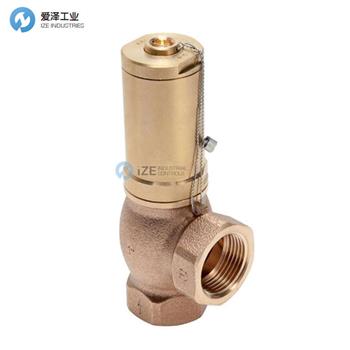

LANDEFELD逆流閥USV12-8產品介紹
Properties |
| |
Material | Red bronze / brass | |
reaction pressure [bar] | 2 - 8 | |
DN [mm] | 15 | |
Thread | G 1/2" | |
Kv value (water)* [l/min] | 37 - 17 | |

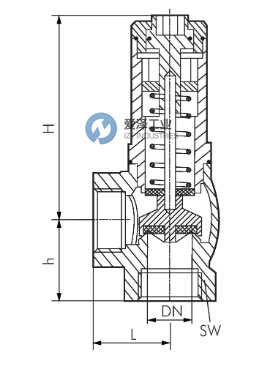

h [mm] | 30 | |
H [mm] | 69 | |
L [mm] | 30 | |
SW [mm] | 28 |
LANDEFELD逆流閥USV12-8產品介紹
版本：
使用內六角扳手可以在操作條件下調整安全閥，而不會將任何介質釋放到周圍環境中。不提供背壓補償。
材料：
閥體：紅銅/黃銅，彈簧：不銹鋼，密封：FKM（設定壓力12至20 bar：PTFE）
溫度范圍：
-20 至 +200 °C
介質：
壓縮空氣和其他具有腐蝕性的不燃?xì)怏w，水和其他中性、無毒液體，礦物油
可選項：
閥體由不銹鋼1.4401/1.4408制成 -ES
優勢：
緊湊的設計
自給自足的氣密設計
優化的高Kv值
可在不拆卸且無需專業工具的情況下進行外部調整
廣泛的壓力范圍覆蓋
可用于氣體和液體介質
應用：
安全閥用于閉環系統中以保護泵免于過載。當可調反應壓力被超過時，閥門按照超壓比例開啟，從而緩慢釋放壓力。安全閥設計為長時間保持開啟狀態。原則上必須假設系統中的壓力可能超過安全閥設定的反應壓力。
安全閥具有完全不同的響應特性。如果反應壓力超過10%以上，它們會幾乎瞬間打開并一次性釋放所有壓力。當壓力降低到設定反應壓力的10-20%以下時，閥門再次關閉。盡管此功能確實可以確保設定壓力不會超過10%以上，但系統會因非比例的開啟行為而承受較大壓力。
Version:
Using an Allen key, the relief valves can be adjusted under operating conditions, and without releasing any medium into the surroundings. You are not compensated against back pressure.
Materials:
Body: Gunmetal / brass, spring: stainless steel, seal: FKM (set pressure 12 to 20 bar: PTFE)
Temperature range:
-20 to +200 °C
Media:
Compressed air and other aggressive, non-flammable gases, water and other neutral, non-toxic fluids, mineral oils
Optional:
Body made of stainless steel 1.4401/1.4408 -ES
Advantages:
?compact design,
?self-contained gas-tight design,
?optimised with high Kv values,
?can be adjusted externally without disassembly and without special tools,
?wide pressure range coverable with a valve,
?can be used for gas-forming and liquid media
Application:
Relief valves are used in closed circuits to protect pumps from overload. When the adjustable reaction pressure is exceeded, the valve opens in proportion to the overpressure and thus slowly releases pressure. The relief valve is designed to be open for an extended time. As a matter of principle, one must assume that the pressure in the system can exceed the reaction pressure set on the relief valve.
Safety valves have a completely different response characteristic. In the event that the reaction pressure is exceeded by more than 10%, they open almost instantaneously and release all pressure at once. When the pressure comes down to 10-20% below the set reaction pressure, the valve closes again.
Although this function does ensure that the set pressure will not be exceeded by more than 10%, the system will be heavily stressed by the non-proportional opening behaviour.
LANDEFELD逆流閥常用型號：
LANDEFELD USV 38-2,5
LANDEFELD USV 12-2,5
LANDEFELD USV 34-2,5
LANDEFELD USV 10-2,5
LANDEFELD USV 114-2,5
LANDEFELD USV 112-2,5
LANDEFELD USV 20-2,5
LANDEFELD USV 38-8
LANDEFELD USV 12-8
LANDEFELD USV 34-8
LANDEFELD USV 10-8
LANDEFELD USV 114-8
LANDEFELD USV 112-8
LANDEFELD USV 20-8
LANDEFELD USV 38-12
LANDEFELD USV 12-12
LANDEFELD USV 34-12
LANDEFELD USV 10-12
LANDEFELD USV 114-12
LANDEFELD USV 112-12
